TSC (Taiwan Semiconductor)
| Part Number | TSM2N100CP ROG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET N-CH 1000V 1.85A TO252 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 128477 pcs | Data sheet | TSM2N100CP ROG.pdf |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA | Vgs (Max) | ±30V |

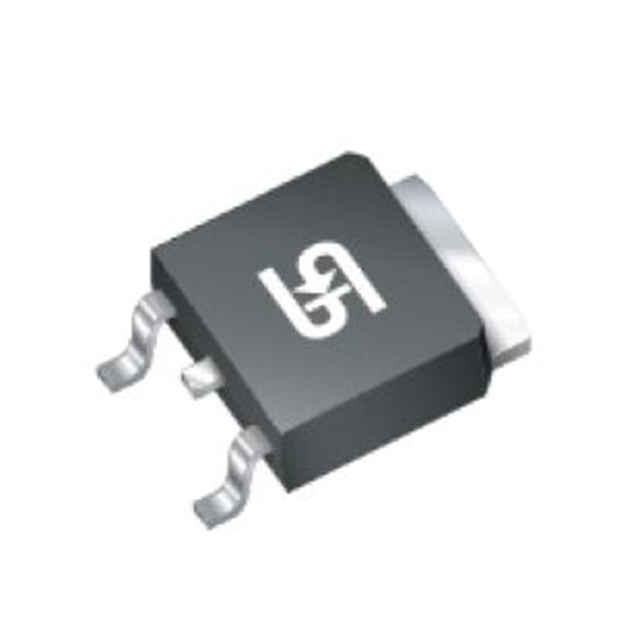

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | TO-252, (D-Pak) |
| Series | - | Rds On (Max) @ Id, Vgs | 8.5 Ohm @ 900mA, 10V |
| Power Dissipation (Max) | 77W (Tc) | Packaging | Cut Tape (CT) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | Other Names | TSM2N100CP ROGCT TSM2N100CP ROGCT-ND TSM2N100CPROGCT |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 52 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 625pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 1000V | Detailed Description | N-Channel 1000V 1.85A (Tc) 77W (Tc) Surface Mount TO-252, (D-Pak) |
| Current - Continuous Drain (Id) @ 25°C | 1.85A (Tc) |
