TSC (Taiwan Semiconductor)

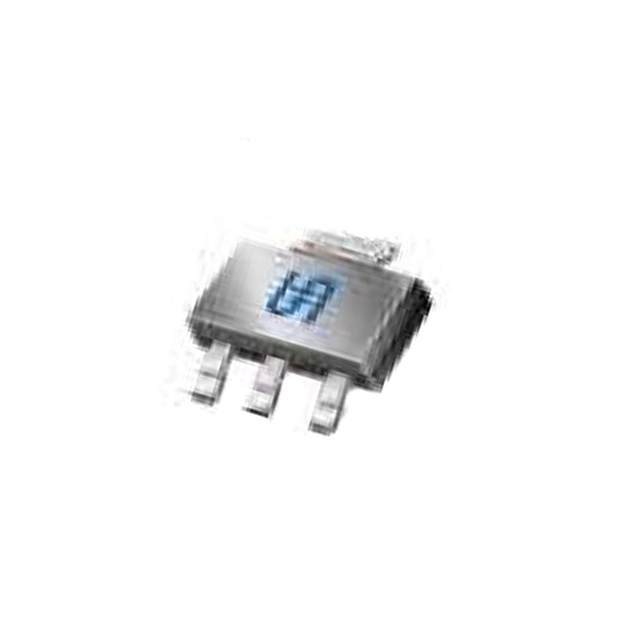

| Part Number | TSM2N60SCW RPG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET N-CH 600V 600MA SOT223 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 199785 pcs | Data sheet | TSM2N60SCW RPG.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | SOT-223 |
| Series | - | Rds On (Max) @ Id, Vgs | 5 Ohm @ 600mA, 10V |
| Power Dissipation (Max) | 2.5W (Tc) | Packaging | Cut Tape (CT) |
| Package / Case | TO-261-4, TO-261AA | Other Names | TSM2N60SCW RPGCT TSM2N60SCW RPGCT-ND TSM2N60SCWRPGCT |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 22 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 435pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 13nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 600mA (Tc) 2.5W (Tc) Surface Mount SOT-223 |
| Current - Continuous Drain (Id) @ 25°C | 600mA (Tc) |
