TSC (Taiwan Semiconductor)
| Part Number | TSM250N02DCQ RFG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET 2 N-CH 20V 5.8A 6TDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 318147 pcs | Data sheet | TSM250N02DCQ RFG.pdf |
| Vgs(th) (Max) @ Id | 800mV @ 250µA | Supplier Device Package | 6-TDFN (2x2) |
| Series | - | Rds On (Max) @ Id, Vgs | 25 mOhm @ 4A, 4.5V |
| Power - Max | 620mW | Packaging | Tape & Reel (TR) |

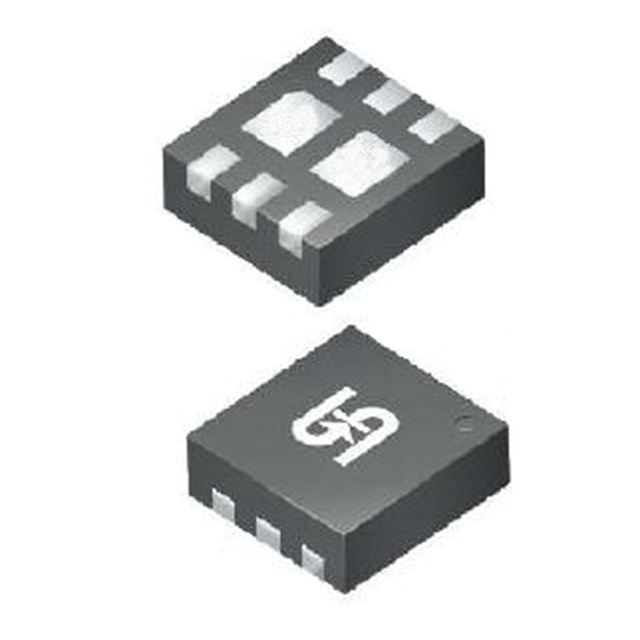

| Package / Case | 6-VDFN Exposed Pad | Other Names | TSM250N02DCQ RFGTR TSM250N02DCQ RFGTR-ND TSM250N02DCQRFGTR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 28 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 775pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 7.7nC @ 4.5V | FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 20V 5.8A (Tc) 620mW Surface Mount 6-TDFN (2x2) | Current - Continuous Drain (Id) @ 25°C | 5.8A (Tc) |
