QSH5718-41-28-055

TRINAMIC Motion Control GmbH

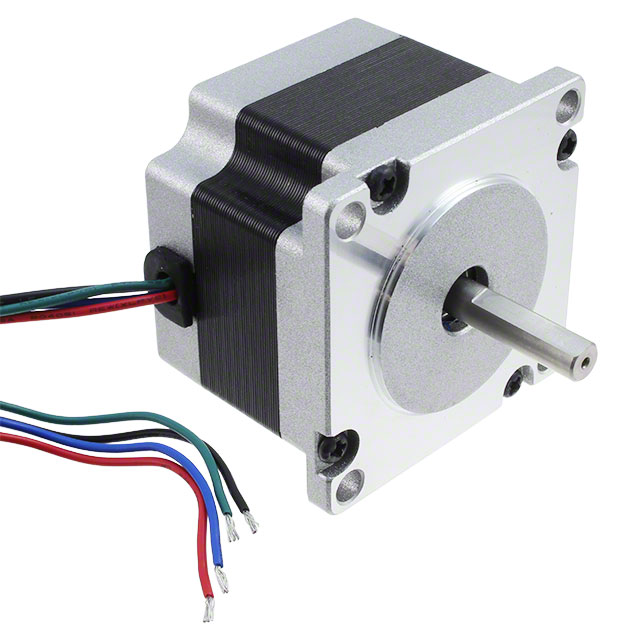

Image may be representation. See specifications for product details.

Product Overview

Part Number:	QSH5718-41-28-055
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	STEPPER MOTOR HYBRID BIPOLAR 2V
Datasheets:	QSH5718-41-28-055.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2262 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2262 pcs

Reference Price (In US Dollars)

1 pcs: $17.79

10 pcs: $17.177

25 pcs: $16.87

100 pcs: $16.318

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$17.79

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of QSH5718-41-28-055

Part Number	QSH5718-41-28-055	Manufacturer	TRINAMIC Motion Control GmbH
Description	STEPPER MOTOR HYBRID BIPOLAR 2V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2262 pcs	Data sheet	QSH5718-41-28-055.pdf
Weight	0.992 lb (449.96g)	Voltage - Rated	2VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	77.89 / 550
Termination Style	Wire Leads	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 2.220" x 2.220" (56.40mm x 56.40mm)
Series	QMot QSH5718	Rotor Inertia	120gcm²
Other Names	1460-1077 50-0034	Operating Temperature	-20°C ~ 50°C
NEMA Frame Size	23	Mounting Hole Spacing	1.856" (47.14mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Length - Shaft and Bearing	0.945" (24.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Flatted Shaft	Diameter - Shaft	0.250" (6.35mm)
Detailed Description	Bipolar Stepper Motor Frame Size 23 200 Step 2.8A 2VDC	Current Rating	2.8A
Coil Type	Bipolar	Coil Resistance	700 mOhms
Approvals	CE	Accuracy	±5%
