QSH4218-35-10-027

TRINAMIC Motion Control GmbH

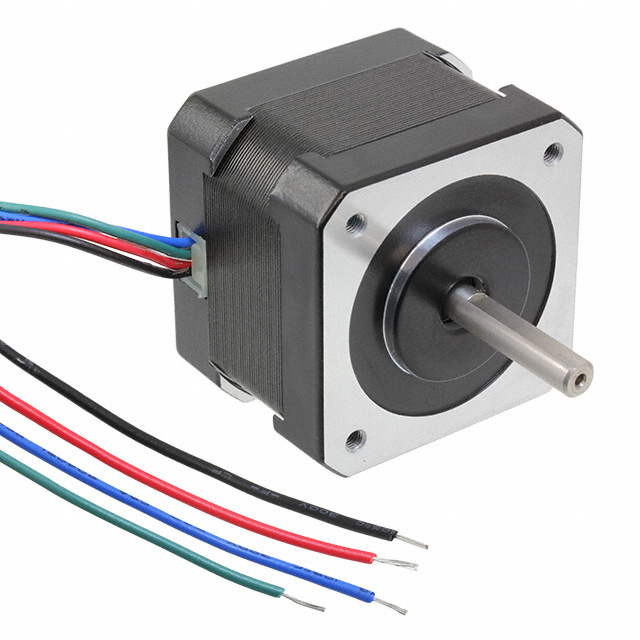

Image may be representation. See specifications for product details.

Product Overview

Part Number:	QSH4218-35-10-027
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	STEP MOTOR HYBRID BIPOLAR 5.3V
Datasheets:	QSH4218-35-10-027.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3064 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3064 pcs

Reference Price (In US Dollars)

1 pcs: $14.286

10 pcs: $12.988

25 pcs: $12.555

100 pcs: $11.689

250 pcs: $11.516

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$14.286

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of QSH4218-35-10-027

Part Number	QSH4218-35-10-027	Manufacturer	TRINAMIC Motion Control GmbH
Description	STEP MOTOR HYBRID BIPOLAR 5.3V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3064 pcs	Data sheet	QSH4218-35-10-027.pdf
Weight	0.485 lb (219.99g)	Voltage - Rated	5.3VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	38.2 / 270
Termination Style	Wire Leads	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 1.665" x 1.665" (42.30mm x 42.30mm)
Series	QMot QSH4218	Rotor Inertia	35gcm²
Other Names	1460-1074 50-0028	Operating Temperature	-20°C ~ 50°C
NEMA Frame Size	17	Mounting Hole Spacing	1.220" (30.99mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Length - Shaft and Bearing	0.945" (24.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Flatted Shaft	Diameter - Shaft	0.197" (5.00mm)
Detailed Description	Bipolar Stepper Motor 200 Step 1A 5.3VDC	Current Rating	1A
Coil Type	Bipolar	Coil Resistance	5.3 Ohms
Approvals	CE	Accuracy	±5%
