QSH6018-45-28-110

TRINAMIC Motion Control GmbH

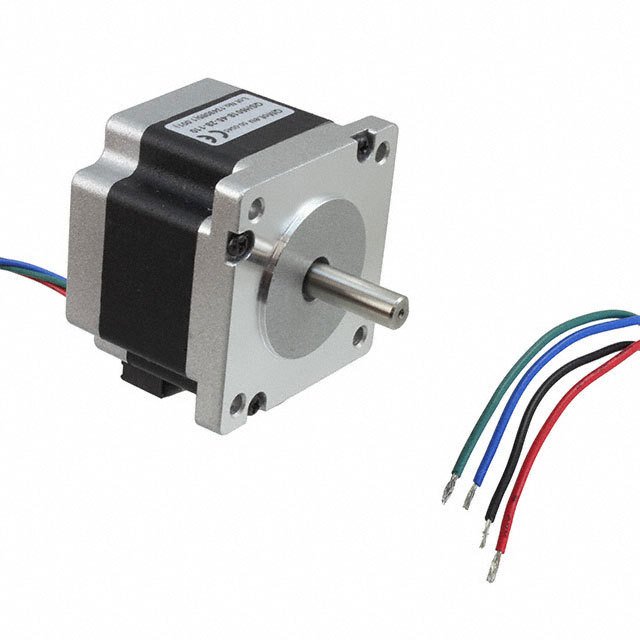

Image may be representation. See specifications for product details.

Product Overview

Part Number:	QSH6018-45-28-110
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	STEP MOTOR HYBRID BIPOLAR 2.1V
Datasheets:	QSH6018-45-28-110.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1450 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1450 pcs

Reference Price (In US Dollars)

1 pcs: $25.513

10 pcs: $24.633

25 pcs: $24.193

100 pcs: $23.401

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$25.513

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of QSH6018-45-28-110

Part Number	QSH6018-45-28-110	Manufacturer	TRINAMIC Motion Control GmbH
Description	STEP MOTOR HYBRID BIPOLAR 2.1V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1450 pcs	Data sheet	QSH6018-45-28-110.pdf
Weight	1.3 lbs (589.7g)	Voltage - Rated	2.1VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	155.77 / 1100
Termination Style	Wire Leads	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Series	QMot QSH6018	Rotor Inertia	275gcm²
Other Names	1460-1081 50-0045	Operating Temperature	-20°C ~ 50°C
NEMA Frame Size	24	Mounting Hole Spacing	1.856" (47.14mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Length - Shaft and Bearing	0.945" (24.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Flatted Shaft	Diameter - Shaft	0.315" (8.00mm)
Detailed Description	Bipolar Stepper Motor Frame Size 24 200 Step 2.8A 2.1VDC	Current Rating	2.8A
Coil Type	Bipolar	Coil Resistance	700 mOhms
Approvals	CE	Accuracy	±5%
