TSC (Taiwan Semiconductor)
| Part Number | TSM038N03PQ33 RGG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET N-CH 30V 78A 8PDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 257485 pcs | Data sheet | TSM038N03PQ33 RGG.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | Vgs (Max) | ±20V |

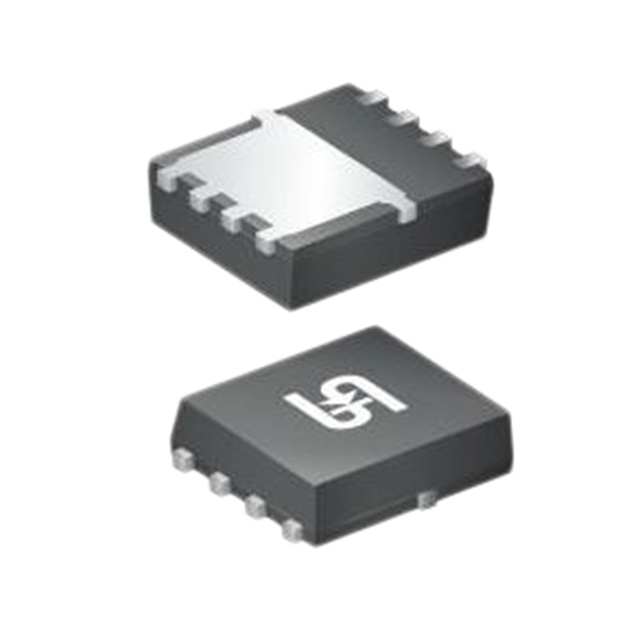

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-PDFN (3x3) |
| Series | - | Rds On (Max) @ Id, Vgs | 3.8 mOhm @ 19A, 10V |
| Power Dissipation (Max) | 39W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN | Other Names | TSM038N03PQ33 RGGTR TSM038N03PQ33 RGGTR-ND TSM038N03PQ33RGGTR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2557pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 25nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 78A (Tc) 39W (Tc) Surface Mount 8-PDFN (3x3) | Current - Continuous Drain (Id) @ 25°C | 78A (Tc) |
