TSC (Taiwan Semiconductor)

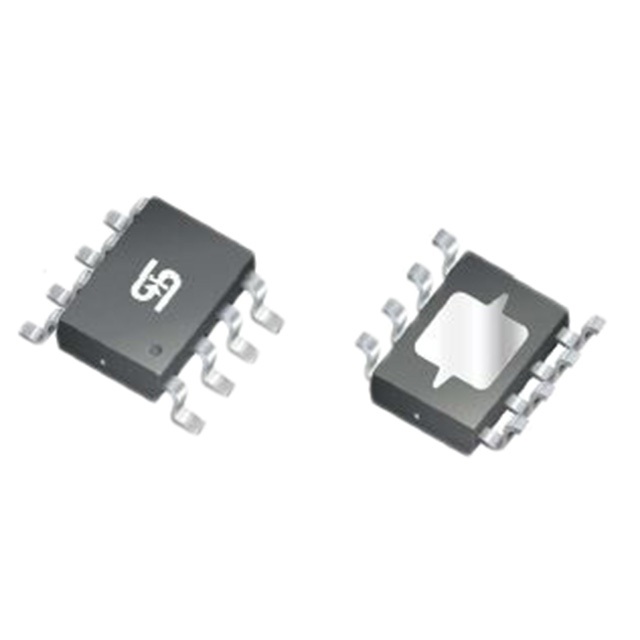

| Part Number | TSM042N03CS RLG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET N-CHANNEL 30V 30A 8SOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 235418 pcs | Data sheet | TSM042N03CS RLG.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-SOP |
| Series | - | Rds On (Max) @ Id, Vgs | 4.2 mOhm @ 12A, 10V |
| Power Dissipation (Max) | 7W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Other Names | TSM042N03CS RLGTR TSM042N03CS RLGTR-ND TSM042N03CSRLGTR |
| Operating Temperature | 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 28 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2200pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 30A (Tc) 7W (Tc) Surface Mount 8-SOP |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
