QSH8618-96-55-700

TRINAMIC Motion Control GmbH

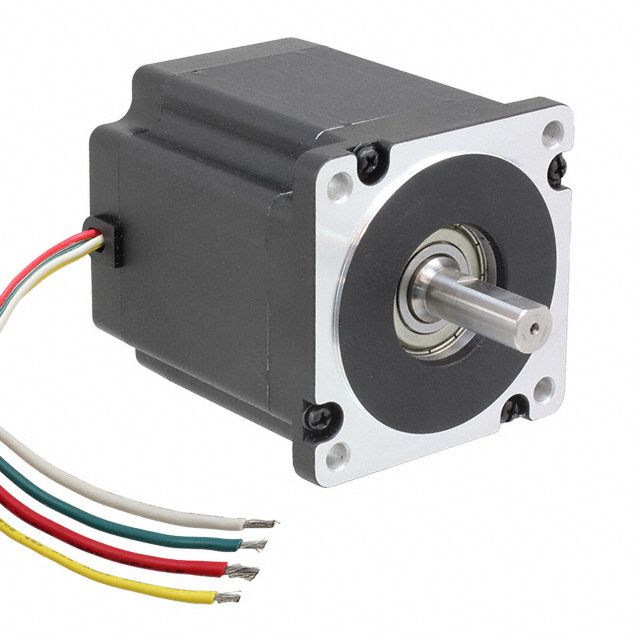

Image may be representation. See specifications for product details.

Product Overview

Part Number:	QSH8618-96-55-700
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	STEP MOTOR HYBRID BIPOLAR 2.56V
Datasheets:	QSH8618-96-55-700.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	314 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 314 pcs

Reference Price (In US Dollars)

1 pcs: $100.345

10 pcs: $96.76

25 pcs: $95.327

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$100.345

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of QSH8618-96-55-700

Part Number	QSH8618-96-55-700	Manufacturer	TRINAMIC Motion Control GmbH
Description	STEP MOTOR HYBRID BIPOLAR 2.56V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	314 pcs	Data sheet	QSH8618-96-55-700.pdf
Weight	6.2 lbs (2.8kg)	Voltage - Rated	2.56VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	991.28 / 7000
Termination Style	Wire Leads	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 3.380" x 3.380" (85.85mm x 85.85mm)
Series	QMot QSH8618	Rotor Inertia	2700gcm²
Other Names	1460-1085 50-0063	Operating Temperature	-20°C ~ 50°C
NEMA Frame Size	34	Mounting Hole Spacing	2.740" (69.60mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Length - Shaft and Bearing	1.310" (33.27mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Flatted Shaft	Diameter - Shaft	0.500" (12.70mm)
Detailed Description	Bipolar Stepper Motor Frame Size 34 200 Step 5.5A 2.56VDC	Current Rating	5.5A
Coil Type	Bipolar	Coil Resistance	450 mOhms
Approvals	CE	Accuracy	±5%
