PD42-2-1240-TMCL

TRINAMIC Motion Control GmbH

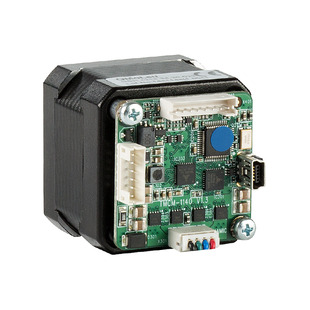

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PD42-2-1240-TMCL
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	PANDRIVE NEMA17, 24V, 0.36NM
Datasheets:	1.PD42-2-1240-TMCL.pdf 2.PD42-2-1240-TMCL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	504 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 504 pcs

Reference Price (In US Dollars)

1 pcs: $76.418

10 pcs: $65.414

50 pcs: $60.99

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$76.418

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PD42-2-1240-TMCL

Part Number	PD42-2-1240-TMCL	Manufacturer	TRINAMIC Motion Control GmbH
Description	PANDRIVE NEMA17, 24V, 0.36NM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	504 pcs	Data sheet	1.PD42-2-1240-TMCL.pdf 2.PD42-2-1240-TMCL.pdf
Voltage - Rated	10 ~ 30VDC	Type	-
Torque - Holding (oz-in / mNm)	50.98 / 360	Termination Style	Wire Leads with Connector
Steps per Revolution	200	Step Angle	1.8°
Size / Dimension	Square - 1.654" x 1.654" (42.00mm x 42.00mm)	Series	PANdrive™
Rotor Inertia	57gcm²	Other Names	1460-1266 30-0306 PD-42-2-1240-TMCL
Operating Temperature	-20°C ~ 50°C	NEMA Frame Size	17
Mounting Hole Spacing	1.220" (31.00mm)	Manufacturer Standard Lead Time	8 Weeks
Length - Shaft and Bearing	0.945" (24.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Integrated Controller, Flatted Shaft	Diameter - Shaft	0.197" (5.00mm)
Detailed Description	Bipolar Stepper Motor Frame Size 17 200 Step 2A 10 ~ 30VDC	Current Rating	2A
Coil Type	Bipolar	Coil Resistance	1.2 Ohms
Approvals	-	Accuracy	±0.05%
