PD42-1-1370-TMCL

TRINAMIC Motion Control GmbHTRINAMIC Motion Control GmbH

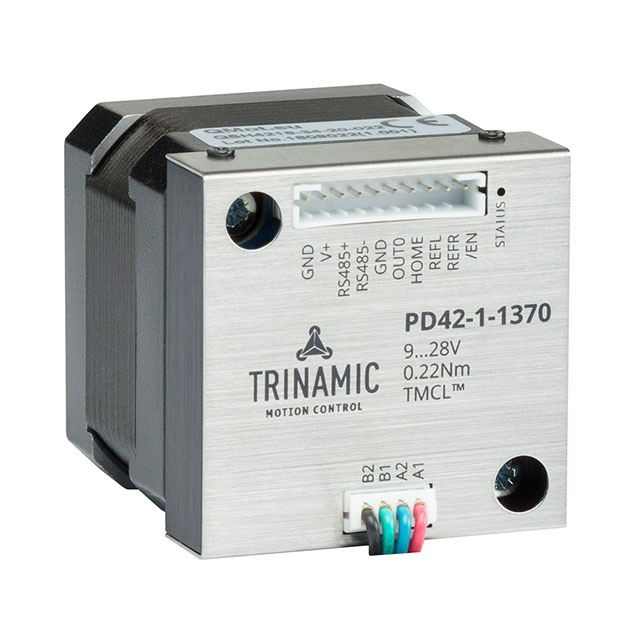

PD42-1-1370-TMCL Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PD42-1-1370-TMCL
Manufacturer/Brand: TRINAMIC Motion Control GmbH
Product description PANDRIVE NEMA17, 24V, 0.22NM
Datasheets: 1.PD42-1-1370-TMCL.pdf2.PD42-1-1370-TMCL.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 465 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 465 pcs
Reference Price (In US Dollars)
1 pcs
$80.907
10 pcs
$68.359
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$80.907

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PD42-1-1370-TMCL

Part Number PD42-1-1370-TMCL Manufacturer TRINAMIC Motion Control GmbH
Description PANDRIVE NEMA17, 24V, 0.22NM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 465 pcs Data sheet 1.PD42-1-1370-TMCL.pdf2.PD42-1-1370-TMCL.pdf
Weight - Voltage - Rated 2VDC
Type Hybrid Torque - Holding (oz-in / mNm) 31.16 / 220
Termination Style Connector Steps per Revolution 200
Step Angle 1.8° Size / Dimension Square - 1.665" x 1.665" (42.30mm x 42.30mm)
Series PANdrive™ Rotor Inertia 35gcm²
Other Names 1460-1313
30-0324
Operating Temperature -20°C ~ 50°C
NEMA Frame Size 17 Mounting Hole Spacing 1.220" (31.00mm)
Moisture Sensitivity Level (MSL) Not Applicable Manufacturer Standard Lead Time 8 Weeks
Length - Shaft and Bearing 0.945" (24.00mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Features Integrated Controller, Flatted Shaft Diameter - Shaft 0.197" (5.00mm)
Detailed Description Bipolar Stepper Motor Hybrid Frame Size 17 200 Step 2A 2VDC Current Rating 2A
Coil Type Bipolar Coil Resistance 1 Ohms
Approvals - Accuracy ±5%
