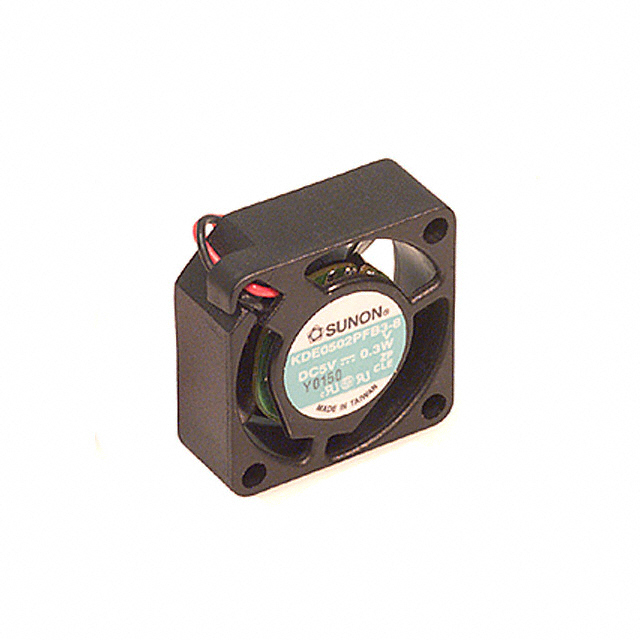

Part Number | KDE0502PFB3-8 V | Manufacturer | Sunon |
---|---|---|---|
Description | FAN AXIAL 25X10MM BALL 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 5398 pcs | Data sheet | 1.KDE0502PFB3-8 V.pdf2.KDE0502PFB3-8 V.pdf3.KDE0502PFB3-8 V.pdf |
Width | 10.00mm | Weight | 0.015 lb (6.8g) |
Voltage Range | 4 ~ 6VDC | Voltage - Rated | 5VDC |
Termination | 2 Wire Leads | Static Pressure | 0.090 in H2O (22.4 Pa) |
Size / Dimension | Square - 25mm L x 25mm H | Series | KDE |
RPM | 6500 RPM | Power (Watts) | 300mW |
Other Names | 259-1013 E0525PFH38---VE KDE0502PFB3-8V KDE0502PFB38V |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Noise | 23.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
Features | - | Fan Type | Tubeaxial |
Current Rating | 0.060A | Bearing Type | Ball |
Approvals | CE, CUR, TUV, UL | Air Flow | 1.8 CFM (0.050m³/min) |
