Sunon

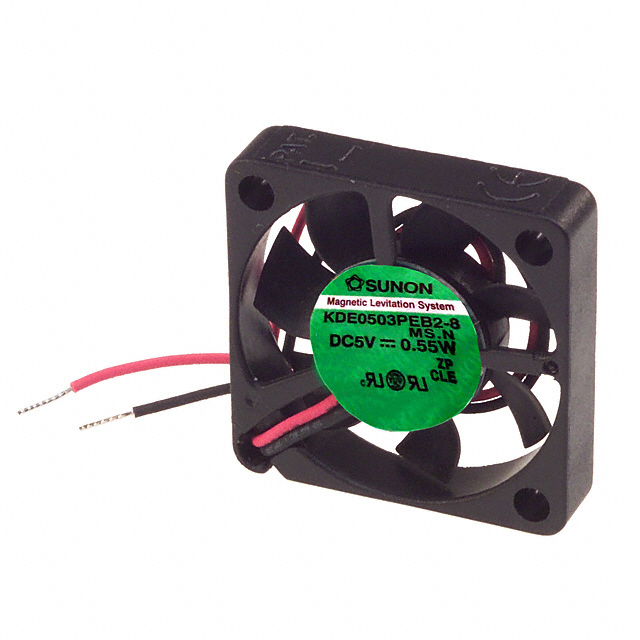

| Part Number | KDE0503PEB2-8 MS.N | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 30X6.9MM 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5883 pcs | Data sheet | 1.KDE0503PEB2-8 MS.N.pdf2.KDE0503PEB2-8 MS.N.pdf |
| Width | 6.90mm | Weight | 0.013 lb (5.9g) |
| Voltage Range | 3 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.080 in H2O (19.9 Pa) |
| Size / Dimension | Square - 30mm L x 30mm H | Series | KDE |
| RPM | 7500 RPM | Power (Watts) | 750mW |
| Other Names | 259-1190 E0530P6A28---NE KDE0503PEB2-8(MS.N) KDE0503PEB28MSN |
Operating Temperature | 14 ~ 194°F (-10 ~ 90°C) |
| Noise | 24.5 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.150A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 4.3 CFM (0.120m³/min) |
