Sunon

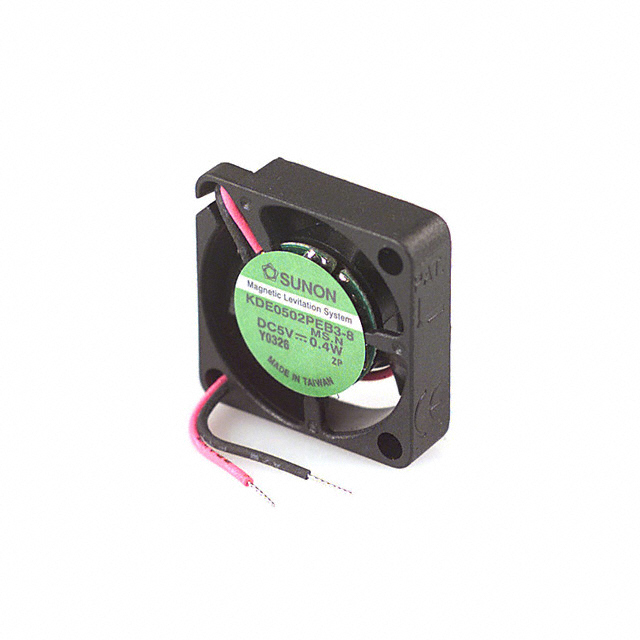

| Part Number | KDE0502PEB3-8 (MS.N) | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 25X6.9MM 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5072 pcs | Data sheet | 1.KDE0502PEB3-8 (MS.N).pdf2.KDE0502PEB3-8 (MS.N).pdf |
| Width | 6.90mm | Weight | 0.011 lb (4.99g) |
| Voltage Range | 3 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.070 in H2O (17.4 Pa) |
| Size / Dimension | Square - 25mm L x 25mm H | Series | KDE |
| RPM | 7000 RPM | Power (Watts) | 400mW |
| Other Names | 259-1115 E0525P6A38---NE KDE0502PEB3-8(MS.N) KDE0502PEB3-8.MS.N KDE0502PEB38MS.N KDE0502PEB38MSN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 16.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.080A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 1.4 CFM (0.040m³/min) |
