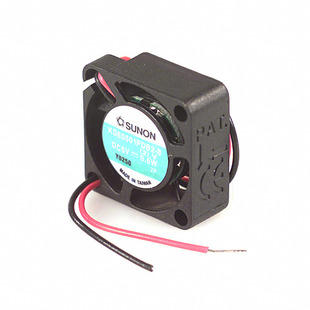

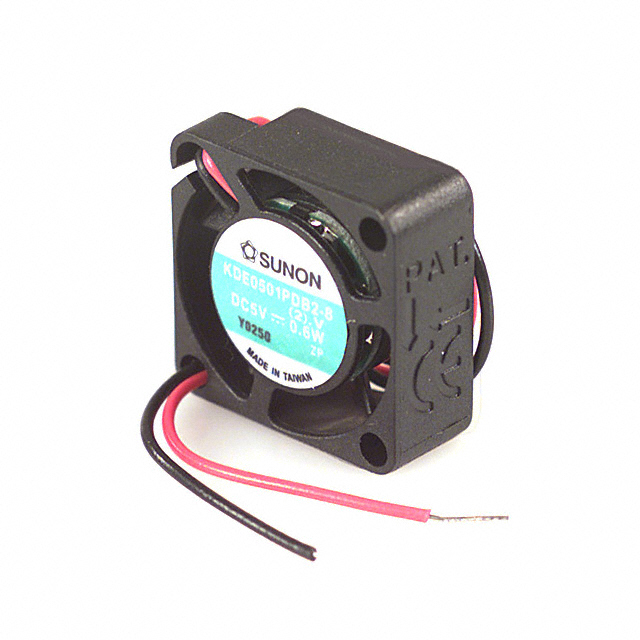

Part Number | KDE0501PDB2-8(2)(V) | Manufacturer | Sunon |
---|---|---|---|
Description | FAN AXIAL 20X8MM BALL 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 5549 pcs | Data sheet | 1.KDE0501PDB2-8(2)(V).pdf2.KDE0501PDB2-8(2)(V).pdf |
Width | 8.00mm | Weight | 0.011 lb (4.99g) |
Voltage Range | 4 ~ 6VDC | Voltage - Rated | 5VDC |
Termination | 2 Wire Leads | Static Pressure | 0.150 in H2O (37.4 Pa) |
Size / Dimension | Square - 20mm L x 20mm H | Series | KDE |
RPM | 12000 RPM | Power (Watts) | 600mW |
Other Names | 259-1117 E0520P8B28---VE KDE0501PDB2-8(2)V KDE0501PDB282V |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Noise | 26.5 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
Features | - | Fan Type | Tubeaxial |
Current Rating | 0.120A | Bearing Type | Ball |
Approvals | CE, CUR, TUV, UL | Air Flow | 1.6 CFM (0.045m³/min) |
