STGW8M120DF3

STMicroelectronics

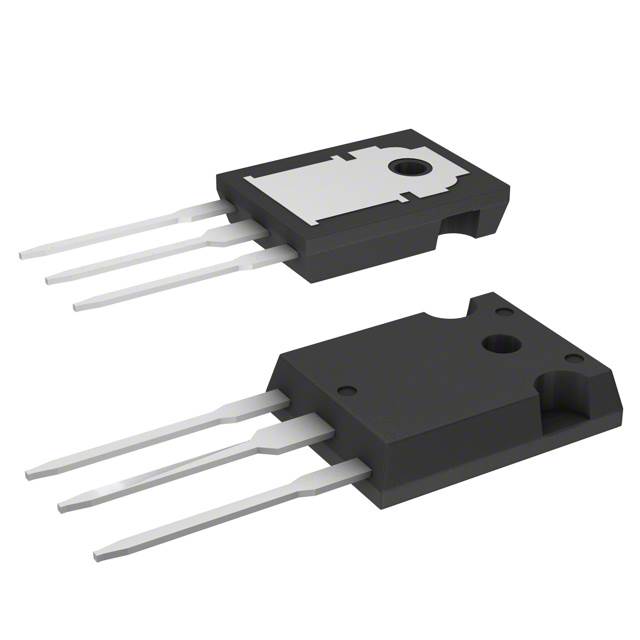

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STGW8M120DF3
Manufacturer/Brand:	STMicroelectronics
Product description	TRENCH GATE FIELD-STOP IGBT M SE
Datasheets:	1.STGW8M120DF3.pdf 2.STGW8M120DF3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44733 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44733 pcs

Reference Price (In US Dollars)

1 pcs: $1.466

30 pcs: $1.176

120 pcs: $1.072

510 pcs: $0.868

1020 pcs: $0.732

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.466

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STGW8M120DF3

Part Number	STGW8M120DF3	Manufacturer	STMicroelectronics
Description	TRENCH GATE FIELD-STOP IGBT M SE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44733 pcs	Data sheet	1.STGW8M120DF3.pdf 2.STGW8M120DF3.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 8A
Test Condition	600V, 8A, 33 Ohm, 15V	Td (on/off) @ 25°C	20ns/126ns
Switching Energy	390µJ (on), 370µJ (Off)	Supplier Device Package	TO-247-3
Series	M	Reverse Recovery Time (trr)	103ns
Power - Max	167W	Package / Case	TO-247-3
Other Names	497-17619	Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	42 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	Trench Field Stop
Gate Charge	32nC	Detailed Description	IGBT Trench Field Stop 1200V 16A 167W Through Hole TO-247-3
Current - Collector Pulsed (Icm)	32A	Current - Collector (Ic) (Max)	16A
