STGWA15S120DF3

STMicroelectronics

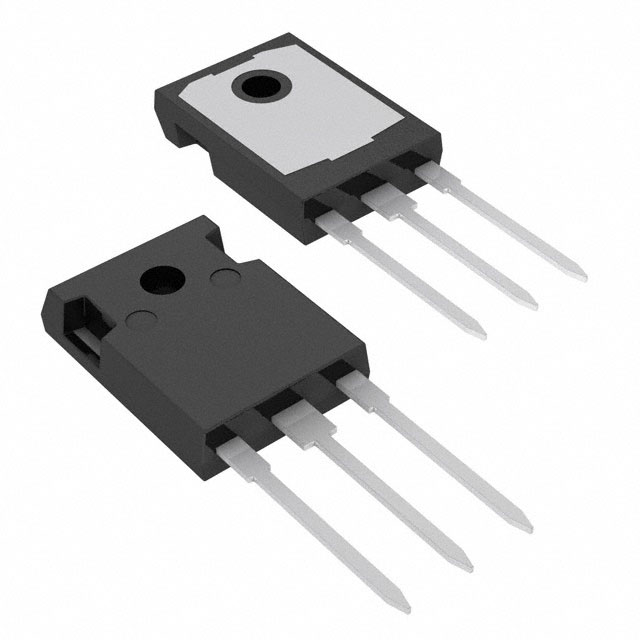

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STGWA15S120DF3
Manufacturer/Brand:	STMicroelectronics
Product description	IGBT 1200V 15A TO247-3L
Datasheets:	STGWA15S120DF3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24520 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24520 pcs

Reference Price (In US Dollars)

1 pcs: $2.616

30 pcs: $2.252

120 pcs: $1.956

510 pcs: $1.703

1020 pcs: $1.483

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.616

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STGWA15S120DF3

Part Number	STGWA15S120DF3	Manufacturer	STMicroelectronics
Description	IGBT 1200V 15A TO247-3L	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24520 pcs	Data sheet	STGWA15S120DF3.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.05V @ 15V, 15A
Test Condition	600V, 15A, 22 Ohm, 15V	Td (on/off) @ 25°C	23ns/140ns
Switching Energy	540µJ (on), 1.38mJ (off)	Supplier Device Package	TO-247-3
Series	-	Reverse Recovery Time (trr)	270ns
Power - Max	259W	Packaging	Tube
Package / Case	TO-247-3	Other Names	497-15626-5
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	Trench Field Stop
Gate Charge	53nC	Detailed Description	IGBT Trench Field Stop 1200V 30A 259W Through Hole TO-247-3
Current - Collector Pulsed (Icm)	60A	Current - Collector (Ic) (Max)	30A
