Orion Fans

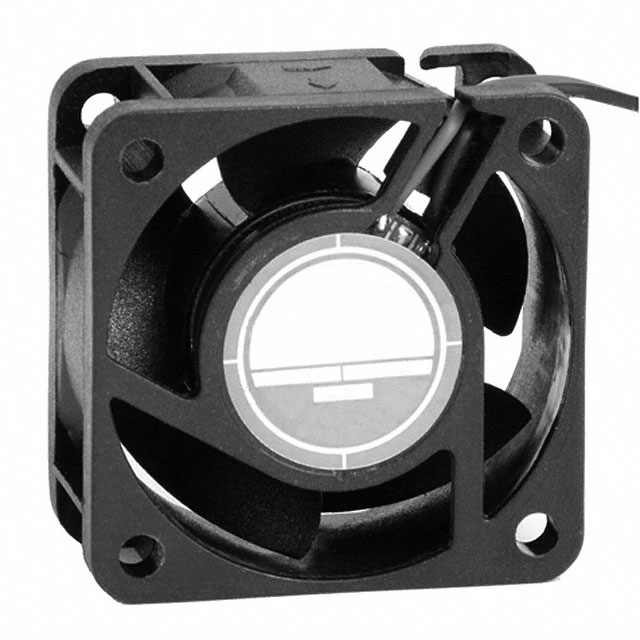

| Part Number | OD4020-12LS02A | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 40X20MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11279 pcs | Data sheet | 1.OD4020-12LS02A.pdf2.OD4020-12LS02A.pdf3.OD4020-12LS02A.pdf4.OD4020-12LS02A.pdf |
| Width | 20.00mm | Weight | - |
| Voltage Range | 7 ~ 14VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.190 in H2O (47.3 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | OD4020 |
| RPM | 6200 RPM | Other Names | OD4020-12LS02AX OD4020-12LSO2A OD4020-12LSO2A-ND OD402012LS02A |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) | Noise | 24.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 30000 Hrs @ 45°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Locked Rotor Sensor |
| Fan Type | Tubeaxial | Current Rating | 0.070A |
| Bearing Type | Sleeve | Approvals | cURus, TUV |
| Air Flow | 7.0 CFM (0.196m³/min) |
