Orion Fans

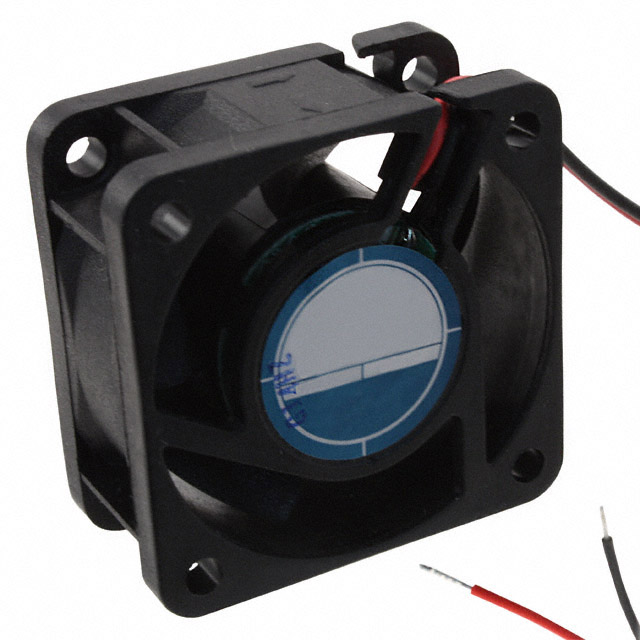

| Part Number | OD4020-12MB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 40X20MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14077 pcs | Data sheet | 1.OD4020-12MB.pdf2.OD4020-12MB.pdf3.OD4020-12MB.pdf4.OD4020-12MB.pdf |
| Width | 20.00mm | Weight | - |
| Voltage Range | 7 ~ 14VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.240 in H2O (59.8 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | OD4020 |
| RPM | 6900 RPM | Other Names | +OD4020-12MB 1053-1217 OD4020-12MBX OD402012MB |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) | Noise | 28.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 45°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.080A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 8.0 CFM (0.224m³/min) |
