IR2114SSPBF

International Rectifier (Infineon Technologies)

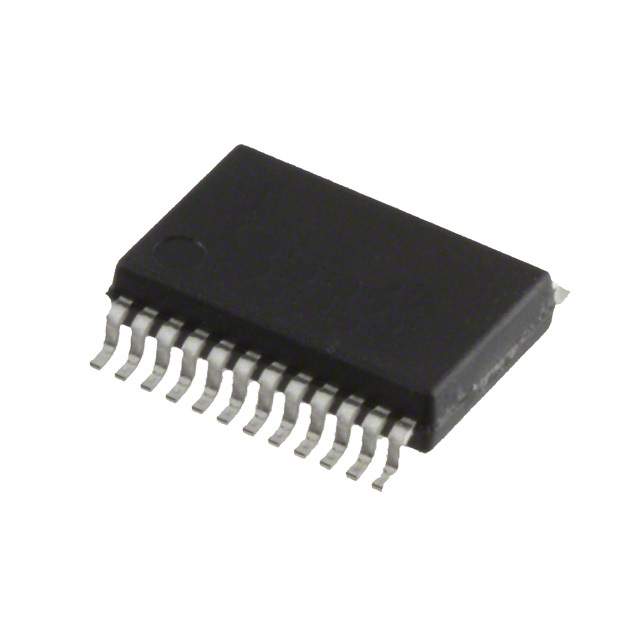

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IR2114SSPBF
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC DRIVER HALF-BRIDGE 24-SSOP
Datasheets:	IR2114SSPBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28965 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 28965 pcs

Reference Price (In US Dollars)

1 pcs: $2.335

10 pcs: $2.11

100 pcs: $1.747

500 pcs: $1.521

1000 pcs: $1.325

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.335

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IR2114SSPBF

Part Number	IR2114SSPBF	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC DRIVER HALF-BRIDGE 24-SSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28965 pcs	Data sheet	IR2114SSPBF.pdf
Voltage - Supply	11.5 V ~ 20 V	Supplier Device Package	24-SSOP
Series	-	Rise / Fall Time (Typ)	24ns, 7ns
Packaging	Tube	Package / Case	24-SSOP (0.209", 5.30mm Width)
Other Names	SP001539894	Operating Temperature	-40°C ~ 150°C (TJ)
Number of Drivers	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	18 Weeks
Logic Voltage - VIL, VIH	0.8V, 2V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Non-Inverting	High Side Voltage - Max (Bootstrap)	600V
Gate Type	IGBT	Driven Configuration	Half-Bridge
Detailed Description	Half-Bridge Gate Driver IC Non-Inverting 24-SSOP	Current - Peak Output (Source, Sink)	2A, 3A
Channel Type	Independent	Base Part Number	IR2114SSPBF
