IR21141SSPBF

International Rectifier (Infineon Technologies)

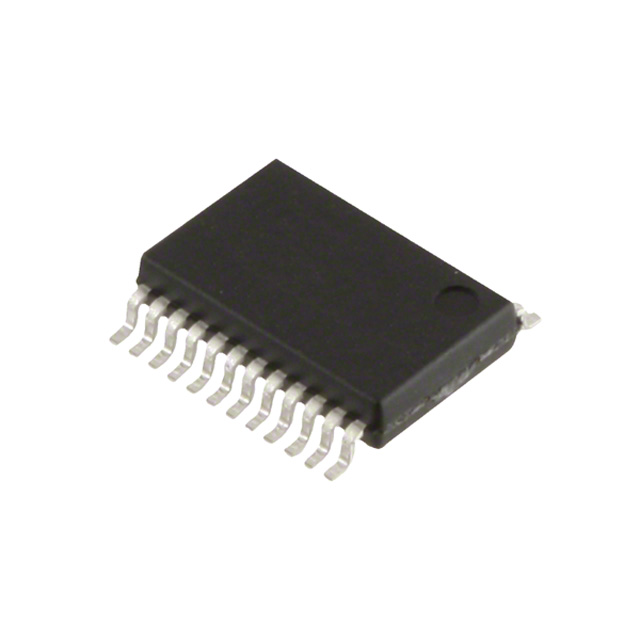

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IR21141SSPBF
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC DRVR HALF BRIDGE 600V 24-SSOP
Datasheets:	1.IR21141SSPBF.pdf 2.IR21141SSPBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4339 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4339 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IR21141SSPBF

Part Number	IR21141SSPBF	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC DRVR HALF BRIDGE 600V 24-SSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4339 pcs	Data sheet	1.IR21141SSPBF.pdf 2.IR21141SSPBF.pdf
Voltage - Supply	11.5 V ~ 20 V	Supplier Device Package	24-SSOP
Series	-	Rise / Fall Time (Typ)	24ns, 7ns
Packaging	Tube	Package / Case	24-SSOP (0.209", 5.30mm Width)
Other Names	SP001538030	Operating Temperature	-40°C ~ 150°C (TJ)
Number of Drivers	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Logic Voltage - VIL, VIH	0.8V, 2V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	600V	Gate Type	IGBT
Driven Configuration	Half-Bridge	Detailed Description	Half-Bridge Gate Driver IC Non-Inverting 24-SSOP
Current - Peak Output (Source, Sink)	2A, 3A	Channel Type	Independent
Base Part Number	IR21141SSPBF
