H2074Z01

Harwin

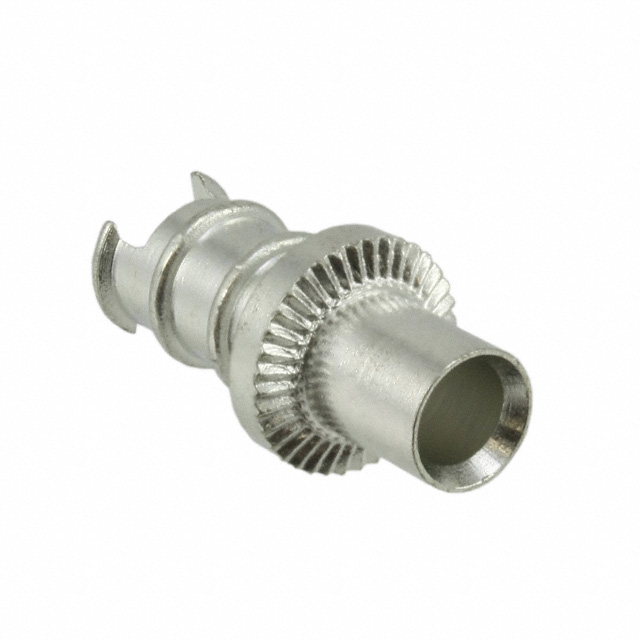

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H2074Z01
Manufacturer/Brand:	Harwin
Product description	TERM TURRET SLOTTED L=8.74MM TIN
Datasheets:	1.H2074Z01.pdf 2.H2074Z01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	128643 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 128643 pcs

Reference Price (In US Dollars)

3000 pcs: $0.181

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.181

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H2074Z01

Part Number	H2074Z01	Manufacturer	Harwin
Description	TERM TURRET SLOTTED L=8.74MM TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	128643 pcs	Data sheet	1.H2074Z01.pdf 2.H2074Z01.pdf
Termination	Swage	Terminal Type	Single End, Fork
Staking Side OD	0.152" ~ 0.154" (3.86mm ~ 3.92mm)	Staking Side ID	0.109" ~ 0.112" (2.77mm ~ 2.85mm)
Series	-	Other Names	952-1432
Number of Turrets	Triple	Mounting Type	Through Hole
Mounting Hole Diameter	0.155" ~ 0.159" (3.94mm ~ 4.04mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	-	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.515" (13.08mm)	Length - Below Flange	0.171" (4.34mm)
Length - Above Board	0.344" (8.74mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	-	Insulation	Non-Insulated
Flange Diameter	0.250" (6.35mm)	Diameter - Turret Head	0.180" (4.57mm)
Detailed Description	Terminal Turret Connector Single End, Fork 0.344" (8.74mm) Tin	Contact Material	Brass Alloy
Contact Finish Thickness	-	Contact Finish	Tin
Board Thickness	0.126" (3.20mm)
