H2072ZL1

Harwin

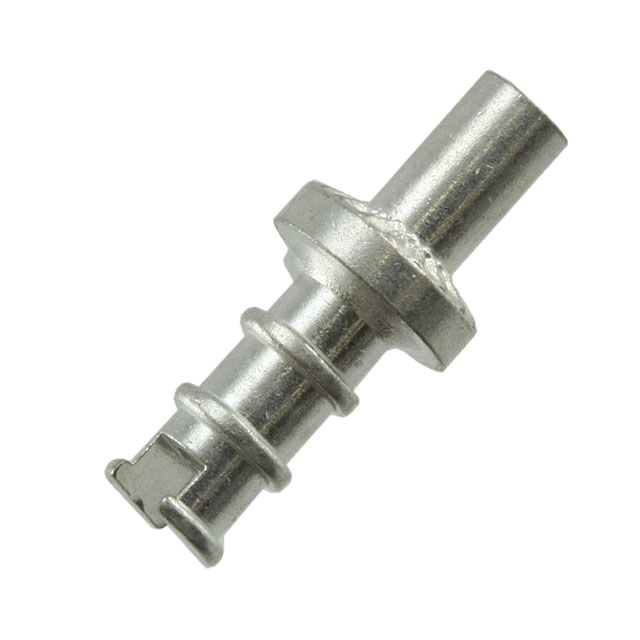

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H2072ZL1
Manufacturer/Brand:	Harwin
Product description	TERM TURRET SLOTTED L=6.52MM TIN
Datasheets:	1.H2072ZL1.pdf 2.H2072ZL1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	244306 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 244306 pcs

Reference Price (In US Dollars)

1 pcs: $0.211

10 pcs: $0.198

25 pcs: $0.178

50 pcs: $0.158

100 pcs: $0.151

250 pcs: $0.138

500 pcs: $0.132

1000 pcs: $0.109

2500 pcs: $0.099

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.211

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H2072ZL1

Part Number	H2072ZL1	Manufacturer	Harwin
Description	TERM TURRET SLOTTED L=6.52MM TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	244306 pcs	Data sheet	1.H2072ZL1.pdf 2.H2072ZL1.pdf
Termination	Swage	Terminal Type	Single End, Fork
Staking Side OD	0.074" ~ 0.079" (1.87mm ~ 2.01mm)	Staking Side ID	0.046" ~ 0.048" (1.17mm ~ 1.22mm)
Series	-	Other Names	952-1430
Number of Turrets	Triple	Mounting Type	Through Hole
Mounting Hole Diameter	0.079" ~ 0.083" (2.01mm ~ 2.11mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	-	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.382" (9.70mm)	Length - Below Flange	0.125" (3.18mm)
Length - Above Board	0.257" (6.52mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	-	Insulation	Non-Insulated
Flange Diameter	0.156" (3.96mm)	Diameter - Turret Head	0.100" (2.54mm)
Detailed Description	Terminal Turret Connector Single End, Fork 0.257" (6.52mm) Tin	Contact Material	Brass Alloy
Contact Finish Thickness	-	Contact Finish	Tin
Board Thickness	0.094" (2.39mm)
