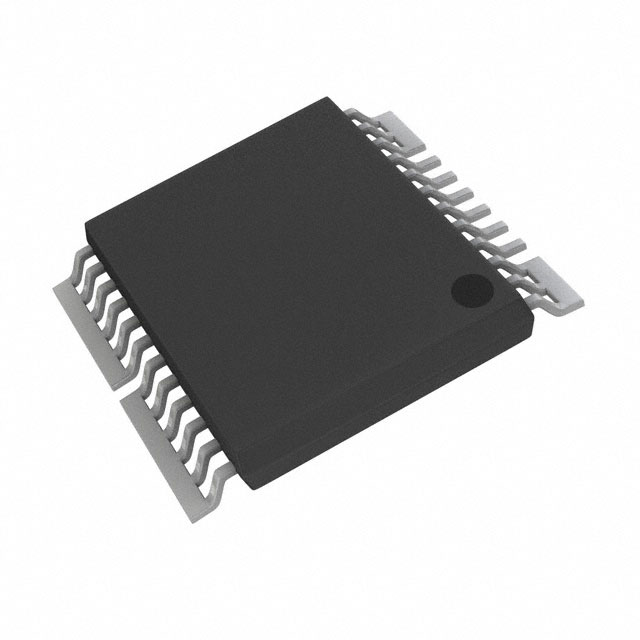

Asahi Kasei Microdevices / AKM Semiconductor
| Part Number | CQ3302 | Manufacturer | Asahi Kasei Microdevices / AKM Semiconductor |
|---|---|---|---|
| Description | SENSOR CURRENT HALL 20A AC/DC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29199 pcs | Data sheet | CQ3302.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V | Series | CQ |
| Sensor Type | Hall Effect, Open Loop | Sensitivity | 100mV/A |
| Response Time | 0.5µs | Polarization | Bidirectional |
| Packaging | Tape & Reel (TR) | Package / Case | 24-LSSOP (0.220", 5.60mm Width), 10 Leads |
| Output | Ratiometric, Voltage | Other Names | 974-1088-2 CQ-3302 CQ3302-ND |
| Operating Temperature | -40°C ~ 90°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Manufacturer Standard Lead Time | 14 Weeks | Linearity | ±0.6% |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency | 1MHz |
| For Measuring | AC/DC | Detailed Description | Current Sensor 21A 1 Channel Hall Effect, Open Loop Bidirectional 24-LSSOP (0.220", 5.60mm Width), 10 Leads |
| Current - Supply (Max) | 11mA | Current - Sensing | 21A |
| Accuracy | ±0.5% |
