CQ320A

Asahi Kasei Microdevices / AKM Semiconductor

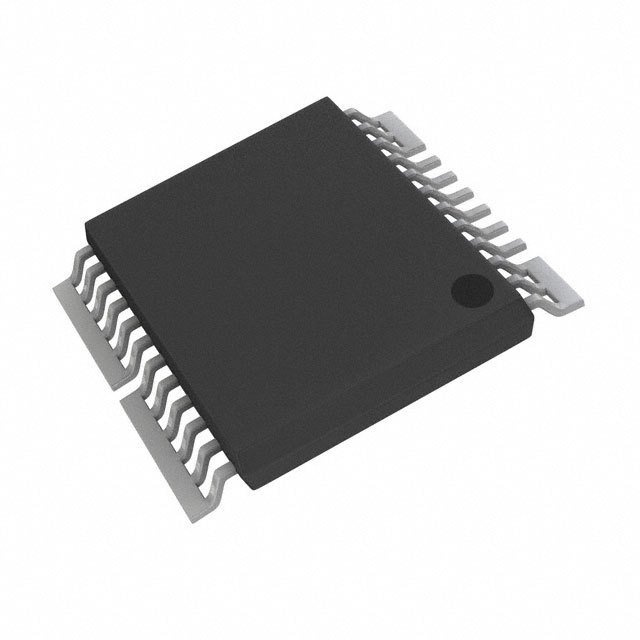

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CQ320A
Manufacturer/Brand:	Asahi Kasei Microdevices / AKM Semiconductor
Product description	CORELESS CURENT SENSOR / 20A W/S
Datasheets:	CQ320A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26008 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 26008 pcs

Reference Price (In US Dollars)

1 pcs: $2.996

5 pcs: $2.645

10 pcs: $2.336

25 pcs: $1.895

50 pcs: $1.675

100 pcs: $1.631

500 pcs: $1.366

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.996

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CQ320A

Part Number	CQ320A	Manufacturer	Asahi Kasei Microdevices / AKM Semiconductor
Description	CORELESS CURENT SENSOR / 20A W/S	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26008 pcs	Data sheet	CQ320A.pdf
Voltage - Supply	3.3V	Series	-
Sensor Type	Hall Effect, Open Loop	Sensitivity	45mV/A
Response Time	0.5µs	Polarization	Bidirectional
Packaging	Original-Reel®	Package / Case	24-LSSOP (0.220", 5.60mm Width), 10 Leads
Output	Ratiometric, Voltage	Other Names	974-1134-6
Operating Temperature	-40°C ~ 90°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Linearity	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	-
For Measuring	AC/DC	Detailed Description	Current Sensor 29.3A 1 Channel Hall Effect, Open Loop Bidirectional 24-LSSOP (0.220", 5.60mm Width), 10 Leads
Current - Supply (Max)	6.2mA	Current - Sensing	29.3A
Accuracy	±1.3%
