Anytek (Amphenol Anytek)

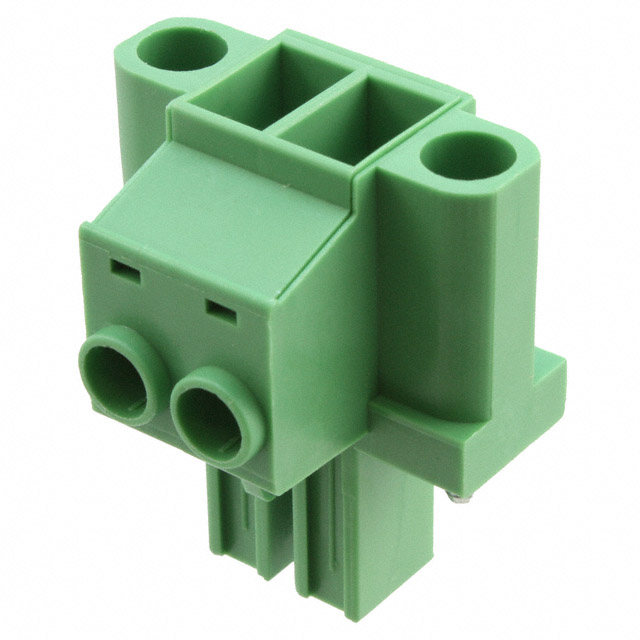

| Part Number | 20020517-M021B01LF | Manufacturer | Anytek (Amphenol Anytek) |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS STR 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4132 pcs | Data sheet | |
| Wire Strip Length | 6-7mm | Wire Gauge or Range - mm² | 2.5-10mm² |
| Wire Gauge or Range - AWG | 8-24 AWG | Voltage - UL | 300V |
| Type | Plug, Blade Sockets | Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Termination Style | Screw - Rising Cage Clamp | Series | 04-762 |
| Screw Size | M3.5 | Positions Per Level | 2 |
| Plug Wire Entry | 180° | Pitch | 0.300" (7.62mm) |
| Packaging | Bulk | Other Names | 20020517M021B01LF 609-4133 |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.902" (22.90mm) |
| Ingress Protection | - | Housing Material | Thermoplastic Resin |
| Header Orientation | - | Features | Mating Flange, Retention Latches (Non-Wire Side) |
| Detailed Description | 2 Position Terminal Block Plug, Blade Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line) | Current - UL | 32A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Green |
