JMSWD-5XM

Agastat Relays / TE Connectivity

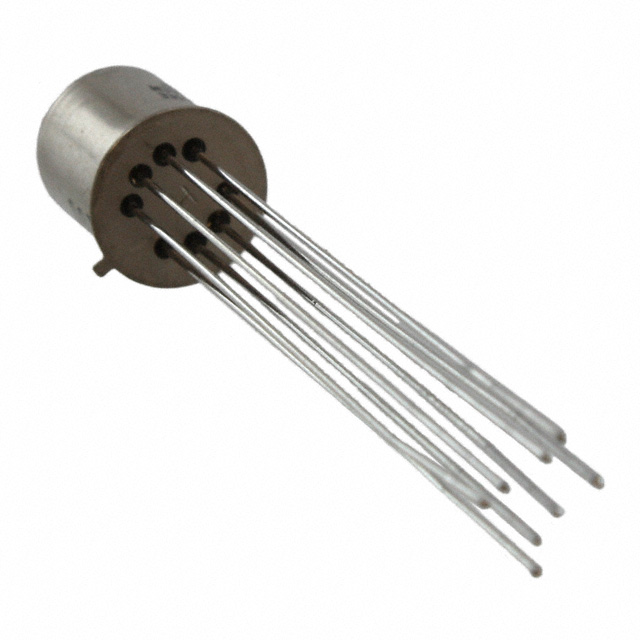

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JMSWD-5XM
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE DPDT 1A 28V
Datasheets:	JMSWD-5XM.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	954 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 954 pcs

Reference Price (In US Dollars)

1 pcs: $41.143

10 pcs: $38.858

25 pcs: $36.573

50 pcs: $34.287

100 pcs: $32.001

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$41.143

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JMSWD-5XM

Part Number	JMSWD-5XM	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE DPDT 1A 28V	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	954 pcs	Data sheet	JMSWD-5XM.pdf
Turn On Voltage (Max)	2.6 VDC	Turn Off Voltage (Min)	0.23 VDC
Termination Style	PC Pin	Switching Voltage	28VDC - Nom
Series	Military, MIL-R-39016/16, MS, CII	Release Time	7.5ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	1122-1090 1122-1090-MIL 1617132-7 A101648 A101648-ND JMSWD5XM M39016/16-017M	Operating Temperature	-65°C ~ 125°C
Operate Time	4ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Features	Sealed - Hermetically
Detailed Description	General Purpose Relay DPDT (2 Form C) Through Hole	Contact Rating (Current)	1A
Contact Material	-	Contact Form	DPDT (2 Form C)
Coil Voltage	5VDC	Coil Type	Non Latching
Coil Resistance	100 Ohms	Coil Power	250 mW
Coil Current	50.0mA
