Agastat Relays / TE Connectivity

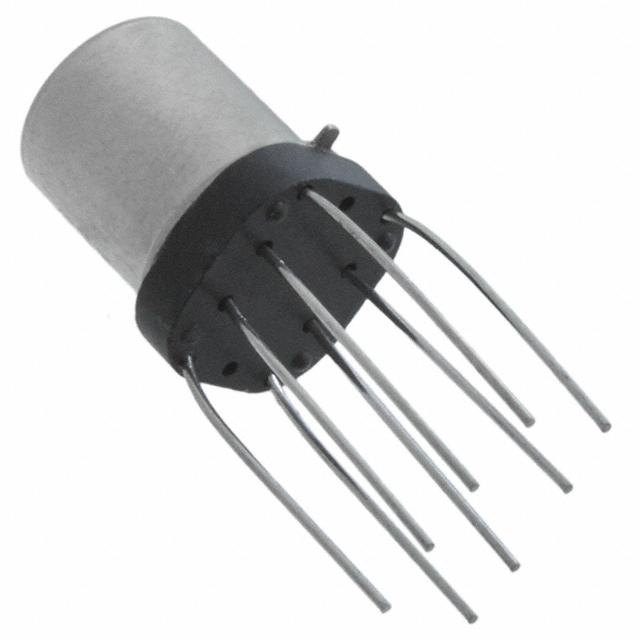

| Part Number | JMSCD-26XPS | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 1A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 751 pcs | Data sheet | JMSCD-26XPS.pdf |
| Turn On Voltage (Max) | 14 VDC | Turn Off Voltage (Min) | 1.4 VDC |
| Termination Style | PC Pin | Switching Voltage | 28VDC - Nom |
| Series | Military, MIL-R-39016/16, MS, CII | Release Time | 7.5ms |
| Relay Type | General Purpose | Packaging | Bulk |
| Other Names | 1-1617128-5 1122-1088 1122-1088-MIL A101646 A101646-ND JMSCD26XPS M39016/16-044P |
Operating Temperature | -65°C ~ 125°C |
| Operate Time | 4ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Features | Sealed - Hermetically |
| Detailed Description | General Purpose Relay DPDT (2 Form C) Through Hole | Contact Rating (Current) | 1A |
| Contact Material | - | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 26.5VDC | Coil Type | Non Latching |
| Coil Resistance | 3.3 kOhms | Coil Power | 213 mW |
| Coil Current | 8.0mA |
