0039532265

Affinity Medical Technologies - a Molex company

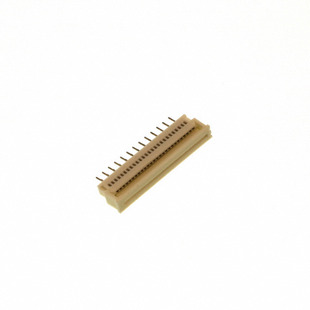

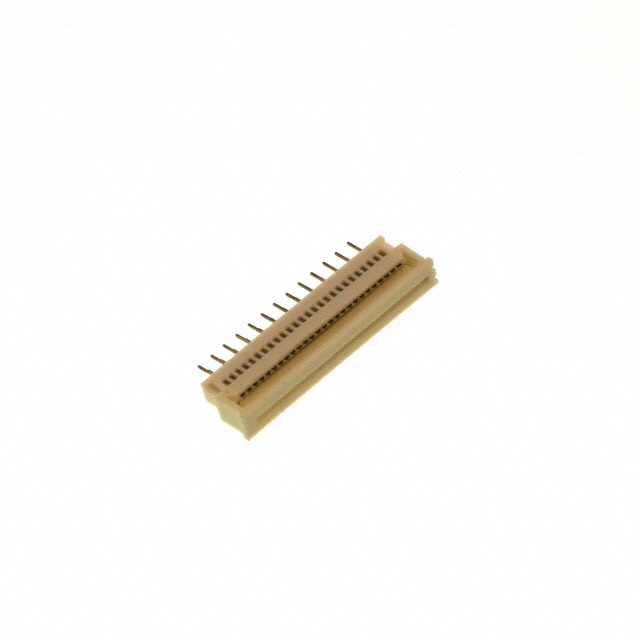

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0039532265
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC VERT 26POS 1.25MM PCB
Datasheets:	0039532265.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	100491 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 100491 pcs

Reference Price (In US Dollars)

1 pcs: $0.741

10 pcs: $0.671

25 pcs: $0.63

50 pcs: $0.603

100 pcs: $0.575

250 pcs: $0.521

500 pcs: $0.48

1000 pcs: $0.411

2500 pcs: $0.384

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.741

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039532265

Part Number	0039532265	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC VERT 26POS 1.25MM PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	100491 pcs	Data sheet	0039532265.pdf
Voltage Rating	200V	Termination	Solder
Series	5597	Pitch	0.049" (1.25mm)
Packaging	Tray	Other Names	39-53-2265 39532265 5597-26CPB7F WM4426
Operating Temperature	-20°C ~ 80°C	Number of Positions	26
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	24 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polybutylene Terephthalate (PBT), Polyester
Housing Color	-	Height Above Board	0.295" (7.50mm)
Flat Flex Type	FFC, FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	26 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.049" (1.25mm) Through Hole
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Vertical, 1 Sided	Cable End Type	Straight
Actuator Material	Polybutylene Terephthalate (PBT), Polyester	Actuator Color	-
