0039532284

Affinity Medical Technologies - a Molex company

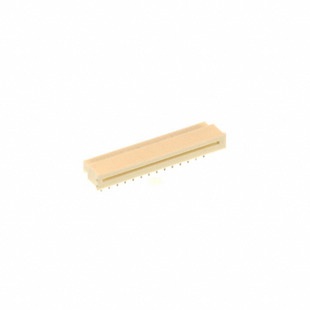

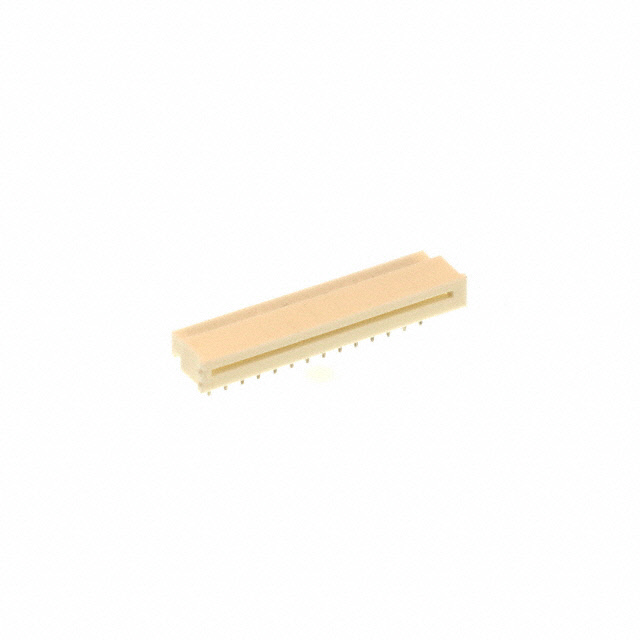

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0039532284
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC TOP 28POS 1.25MM R/A
Datasheets:	0039532284.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	70293 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 70293 pcs

Reference Price (In US Dollars)

1 pcs: $0.908

10 pcs: $0.823

25 pcs: $0.773

50 pcs: $0.739

100 pcs: $0.706

350 pcs: $0.638

700 pcs: $0.588

1050 pcs: $0.504

2800 pcs: $0.47

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.908

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039532284

Part Number	0039532284	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC TOP 28POS 1.25MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	70293 pcs	Data sheet	0039532284.pdf
Voltage Rating	200V	Termination	Solder
Series	5597	Pitch	0.049" (1.25mm)
Packaging	Tray	Other Names	39-53-2284 39532284 5597-28APB7F WM3965
Operating Temperature	-20°C ~ 80°C	Number of Positions	28
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	22 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polybutylene Terephthalate (PBT), Polyester
Housing Color	-	Height Above Board	0.213" (5.40mm)
Flat Flex Type	FFC, FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	28 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Top	Cable End Type	Straight
Actuator Material	Polybutylene Terephthalate (PBT), Polyester	Actuator Color	-
