NSD-1202-ASST

ams

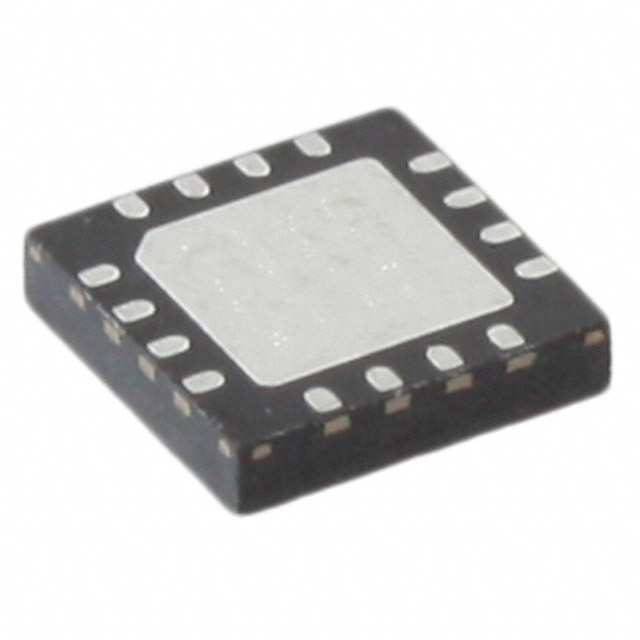

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NSD-1202-ASST
Manufacturer/Brand:	ams
Product description	IC MOTOR DRIVER SQUIGGLE 16QFN
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33206 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 33206 pcs

Reference Price (In US Dollars)

6000 pcs: $0.979

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.979

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NSD-1202-ASST

Part Number	NSD-1202-ASST	Manufacturer	ams
Description	IC MOTOR DRIVER SQUIGGLE 16QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33206 pcs	Data sheet
Voltage - Supply	2.8 V ~ 5.5 V	Voltage - Load	24 V ~ 40 V
Technology	CMOS	Supplier Device Package	16-QFN (4x4)
Step Resolution	-	Series	SQUIGGLE®
Packaging	Tape & Reel (TR)	Package / Case	16-VQFN Exposed Pad
Output Configuration	Half Bridge (4)	Other Names	NSD-1202-ASST-NDTR-ND NSD-1202-ASSTTR
Operating Temperature	-40°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	Piezo
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	I²C
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Motor Driver CMOS I²C 16-QFN (4x4)
Current - Output	25mA	Applications	Haptic Feedback
