8690280000

Weidmuller

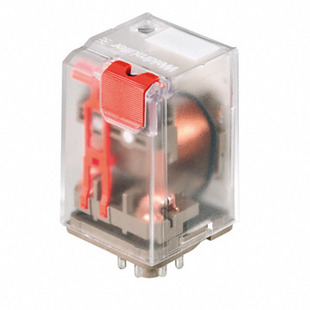

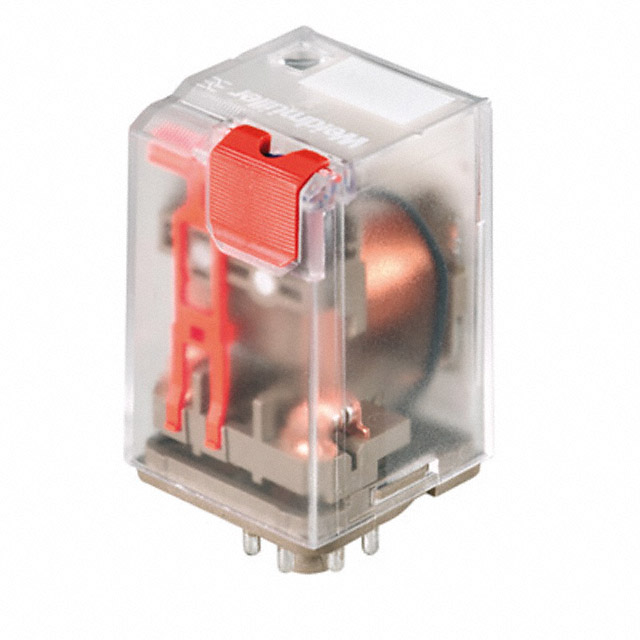

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8690280000
Manufacturer/Brand:	Weidmuller
Product description	RELAY GEN PURPOSE DPDT 10A 24V
Datasheets:	8690280000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3821 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3821 pcs

Reference Price (In US Dollars)

25 pcs: $10.094

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$10.094

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8690280000

Part Number	8690280000	Manufacturer	Weidmuller
Description	RELAY GEN PURPOSE DPDT 10A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3821 pcs	Data sheet	8690280000.pdf
Turn On Voltage (Max)	19.2 VAC	Turn Off Voltage (Min)	7.2 VAC
Termination Style	Plug In, 8 Pin (Octal)	Switching Voltage	400VAC - Max
Series	RRD	Release Time	10ms
Relay Type	General Purpose	Packaging	Bulk
Operating Temperature	-40°C ~ 50°C	Operate Time	15ms
Mounting Type	Socketable	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	LED Indicator, Test Button	Detailed Description	General Purpose Relay DPDT (2 Form C) 24VAC Coil Socketable
Contact Rating (Current)	10A	Contact Material	Silver Nickel (AgNi)
Contact Form	DPDT (2 Form C)	Coil Voltage	24VAC
Coil Type	Non Latching	Coil Resistance	86 Ohms
Coil Power	2.3 VA	Coil Current	94.2mA
