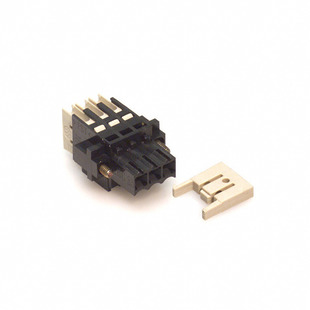

Weidmuller
| Part Number | 1771100000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5958 pcs | Data sheet | |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.35-0.5mm² |
| Wire Gauge or Range - AWG | 20-22 AWG | Voltage - UL | 300V |
| Voltage - IEC | 250V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | IDC |
| Series | Omnimate BL | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | 180° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 281-1711 BLIDC3.5/3F |
Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.492" (12.50mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | - | Features | Mating Flange |
| Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 7A |
| Current - IEC | 6A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
