Weidmuller
| Part Number | 1728360000 | Manufacturer | Weidmuller |
|---|---|---|---|

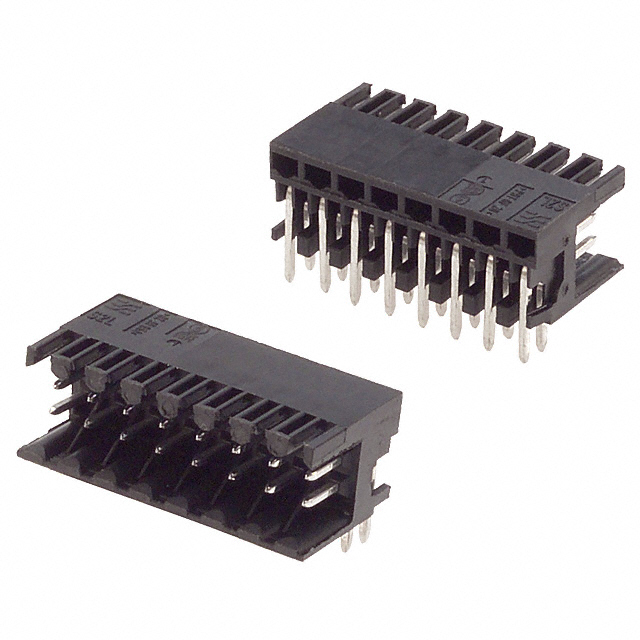

| Description | TERM BLOCK HDR 16POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20802 pcs | Data sheet | |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 150V |
| Voltage - IEC | 100V | Type | Header, Male Pins, Shrouded (2 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Omnimate S2L | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 281-1811 S2L3.5/16/90 |
Operating Temperature | -20°C ~ 100°C |
| Number of Positions | 16 | Number of Levels | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 16 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole | Current - UL | 10A |
| Current - IEC | 7.5A | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
