Weidmuller
| Part Number | 1357060000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 12POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15027 pcs | Data sheet | 1357060000.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Voltage - IEC | 400V | Type | Plug, Female Sockets |
| Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | Unimate BLA | Screw Size | M2.5 |
| Positions Per Level | 12 | Plug Wire Entry | 180° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1357060000-ND 281-3158 BLA 12 B OG |
Operating Temperature | -50°C ~ 120°C |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.598" (15.19mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Header Orientation | - | Features | - |

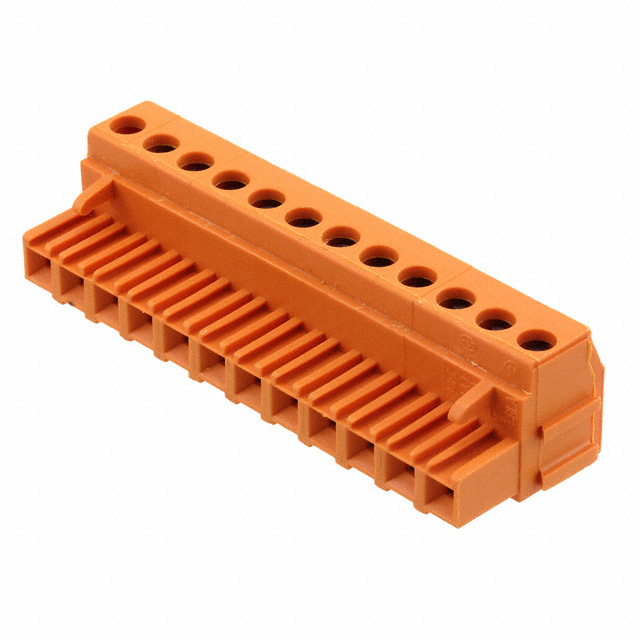

| Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | 17.5A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Orange |
