Weidmuller

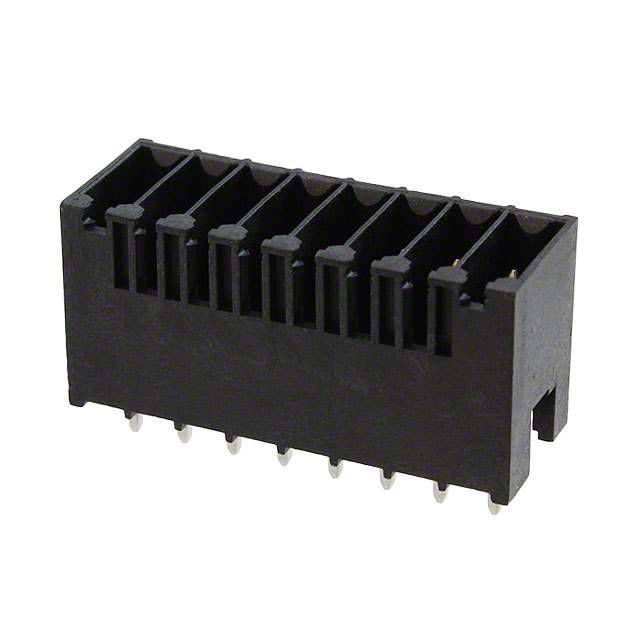

| Part Number | 1290090000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 16POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21323 pcs | Data sheet | 1290090000.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 150V |
| Voltage - IEC | 200V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Omnimate S2C | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 281-2971 | Operating Temperature | -50°C ~ 120°C |
| Number of Positions | 16 | Number of Levels | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.559" (14.20mm) |
| Ingress Protection | IP20 | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole | Current - UL | 10A |
| Current - IEC | 13.4A | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
