ILQ2-X016

Vishay / Semiconductor - Opto Division

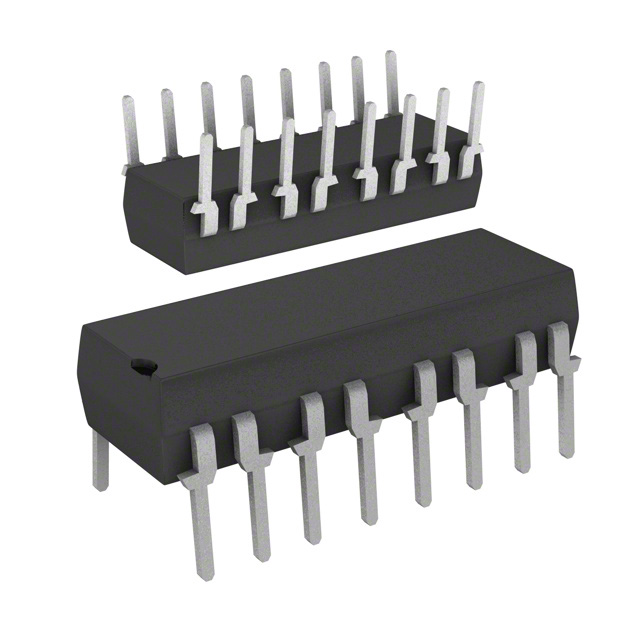

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ILQ2-X016
Manufacturer/Brand:	Vishay / Semiconductor - Opto Division
Product description	OPTOISO 5.3KV 4CH TRANS 16DIP
Datasheets:	1.ILQ2-X016.pdf 2.ILQ2-X016.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74508 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 74508 pcs

Reference Price (In US Dollars)

1000 pcs: $0.422

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.422

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ILQ2-X016

Part Number	ILQ2-X016	Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISO 5.3KV 4CH TRANS 16DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74508 pcs	Data sheet	1.ILQ2-X016.pdf 2.ILQ2-X016.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.25V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	1.2µs, 2.3µs	Supplier Device Package	16-DIP
Series	-	Rise / Fall Time (Typ)	2.6µs, 2.2µs
Packaging	Tube	Package / Case	16-DIP (0.400", 10.16mm)
Output Type	Transistor	Operating Temperature	-40°C ~ 100°C
Number of Channels	4	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP	Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	500% @ 10mA	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	60mA
