IL5

Vishay / Semiconductor - Opto Division

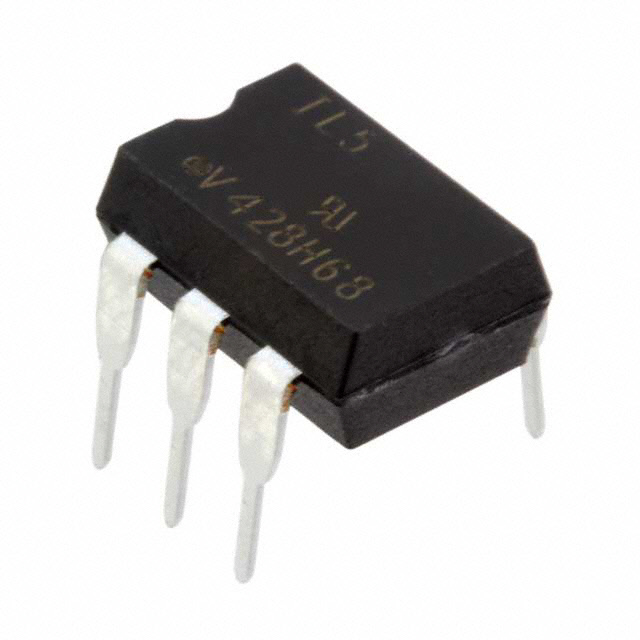

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IL5
Manufacturer/Brand:	Vishay / Semiconductor - Opto Division
Product description	OPTOISO 5.3KV TRANS W/BASE 6DIP
Datasheets:	IL5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4447 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4447 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IL5

Part Number	IL5	Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISO 5.3KV TRANS W/BASE 6DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4447 pcs	Data sheet	IL5.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.25V	Vce Saturation (Max)	250mV (Typ)
Turn On / Turn Off Time (Typ)	2.6µs, 7.2µs	Supplier Device Package	6-DIP
Series	-	Rise / Fall Time (Typ)	7µs, 20µs
Packaging	Tube	Package / Case	6-DIP (0.300", 7.62mm)
Output Type	Transistor with Base	Operating Temperature	-40°C ~ 100°C
Number of Channels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Current Transfer Ratio (Min)	50% @ 10mA	Current Transfer Ratio (Max)	400% @ 10mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	60mA
