Vishay / Semiconductor - Opto Division

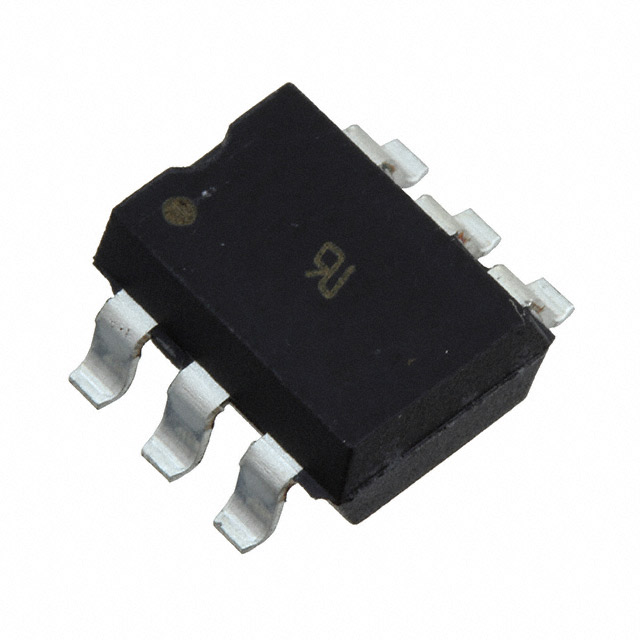

| Part Number | H11AA1-X009T | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 5.3KV TRANS W/BASE 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 116529 pcs | Data sheet | 1.H11AA1-X009T.pdf2.H11AA1-X009T.pdf |
| Voltage - Output (Max) | 30V | Voltage - Isolation | 5300Vrms |
| Voltage - Forward (Vf) (Typ) | 1.2V | Vce Saturation (Max) | 400mV |
| Turn On / Turn Off Time (Typ) | - | Supplier Device Package | 6-SMD |
| Series | - | Rise / Fall Time (Typ) | - |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SMD, Gull Wing |
| Output Type | Transistor with Base | Other Names | H11AA1-X009T-ND H11AA1-X009TTR |
| Operating Temperature | -55°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | AC, DC | Detailed Description | Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-SMD |
| Current Transfer Ratio (Min) | 20% @ 10mA | Current Transfer Ratio (Max) | - |
| Current - Output / Channel | - | Current - DC Forward (If) (Max) | 60mA |
