Vishay / Semiconductor - Opto Division

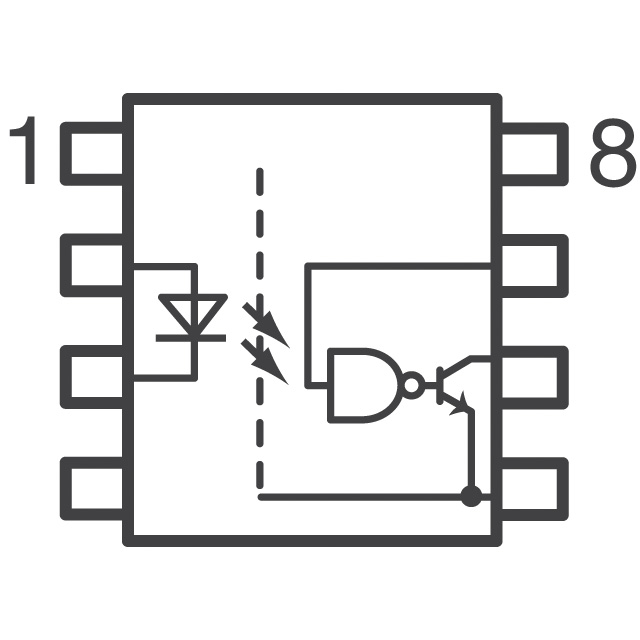

| Part Number | 6N137 | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 5.3KV 1CH OPN DRAIN 8DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85903 pcs | Data sheet | 6N137.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V | Voltage - Isolation | 5300Vrms |
| Voltage - Forward (Vf) (Typ) | 1.4V | Supplier Device Package | 8-DIP |
| Series | - | Rise / Fall Time (Typ) | 23ns, 7ns |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns | Packaging | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) | Output Type | Open Drain |
| Other Names | 6N137GI 6N137GI-ND 751-1262-5 |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 28 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 10MBd Open Drain 5300Vrms 1 Channel 1kV/µs CMTI 8-DIP |
| Data Rate | 10MBd | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 20mA | Common Mode Transient Immunity (Min) | 1kV/µs |
