HomeProductsTransformersAudio TransformersSP-4

SP-4

Triad MagneticsTriad Magnetics

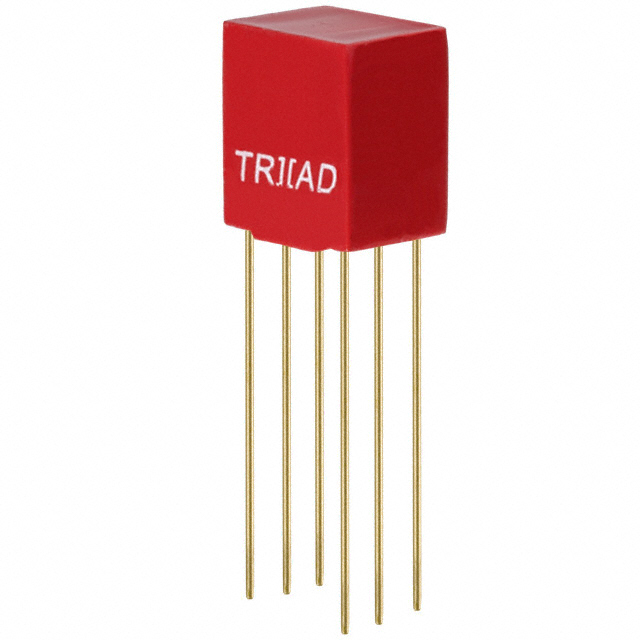

SP-4 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SP-4
Manufacturer/Brand: Triad Magnetics
Product description TRANSF 200K CT/1K CT AUDIO
Datasheets: SP-4.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 7789 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 7789 pcs
Reference Price (In US Dollars)
1 pcs
$7.244
10 pcs
$5.519
25 pcs
$5.088
50 pcs
$4.916
100 pcs
$4.829
250 pcs
$4.657
500 pcs
$4.484
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$7.244

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SP-4

Part Number SP-4 Manufacturer Triad Magnetics
Description TRANSF 200K CT/1K CT AUDIO Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 7789 pcs Data sheet SP-4.pdf
Weight - Voltage - Isolation 1000VRMS @ 1 Second
Turns Ratio - Primary:Secondary 14.1:1 Transformer Type Audio Coupling
Termination Style PC Pin Size / Dimension 0.410" L x 0.310" W (10.41mm x 7.87mm)
Series Red-Spec Return Loss -
Power Level 10mW Packaging Bulk
Other Names 237-1137
SP4		 Operating Temperature -
Mounting Type Through Hole Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insertion Loss -
Impedance - Secondary (Ohms) 1kCT Impedance - Primary (Ohms) 200kCT
Height - Seated (Max) 0.465" (11.80mm) Frequency Response ±2dB
Frequency Range 300Hz ~ 100kHz DC Resistance (DCR) - Secondary 100 Ohm
DC Resistance (DCR) - Primary 5.3 kOhm Approvals -
