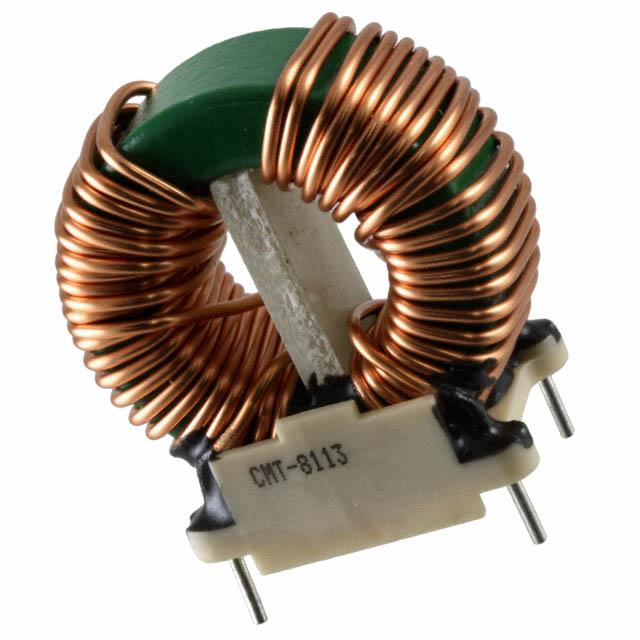

CMT-8113

Triad Magnetics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CMT-8113
Manufacturer/Brand:	Triad Magnetics
Product description	CMC 5MH 8.9A 2LN TH
Datasheets:	CMT-8113.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23497 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23497 pcs

Reference Price (In US Dollars)

1 pcs: $2.864

10 pcs: $2.578

100 pcs: $1.834

500 pcs: $1.719

1000 pcs: $1.604

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.864

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CMT-8113

Part Number	CMT-8113	Manufacturer	Triad Magnetics
Description	CMC 5MH 8.9A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23497 pcs	Data sheet	CMT-8113.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.450" L x 0.800" W (36.83mm x 20.32mm)	Series	CMT
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	237-1378 CMT8113
Operating Temperature	-55°C ~ 105°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	5mH @ 1kHz	Height (Max)	1.500" (38.10mm)
Filter Type	Power Line	Features	ESD
Detailed Description	5mH @ 1kHz 2 Line Common Mode Choke Through Hole 8.9A DCR 22 mOhm	DC Resistance (DCR) (Max)	22 mOhm
Current Rating (Max)	8.9A	Approvals	-
