Toshiba Semiconductor and Storage
| Part Number | TPCF8A01(TE85L) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 20V 3A VS-8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6044 pcs | Data sheet | 1.TPCF8A01(TE85L).pdf2.TPCF8A01(TE85L).pdf |
| Vgs(th) (Max) @ Id | 1.2V @ 200µA | Vgs (Max) | ±12V |

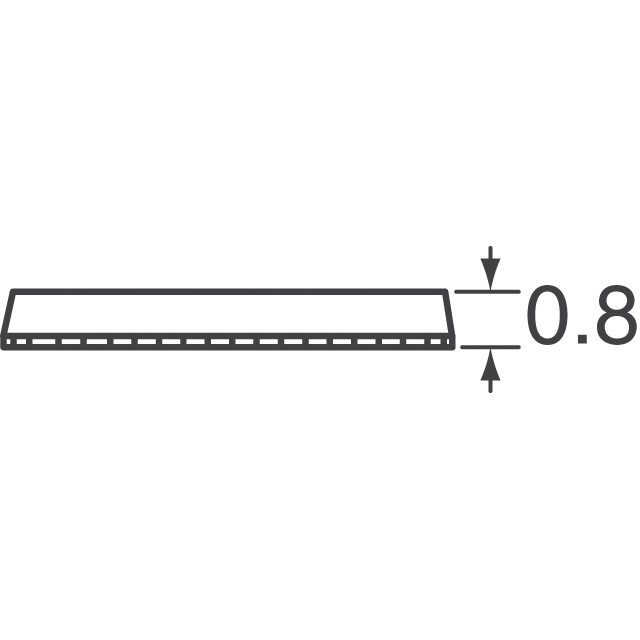

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | VS-8 (2.9x1.5) |
| Series | U-MOSIII | Rds On (Max) @ Id, Vgs | 49 mOhm @ 1.5A, 4.5V |
| Power Dissipation (Max) | 330mW (Ta) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Flat Lead | Other Names | TPCF8A01(TE85L)TR TPCF8A01(TE85L,F) TPCF8A01(TE85L,F)-ND TPCF8A01FTR TPCF8A01FTR-ND TPCF8A01TE85L TPCF8A01TE85LF TPCF8A01TR TPCF8A01TR-ND |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 590pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 7.5nC @ 5V |
| FET Type | N-Channel | FET Feature | Schottky Diode (Isolated) |
| Drive Voltage (Max Rds On, Min Rds On) | 2V, 4.5V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | N-Channel 20V 3A (Ta) 330mW (Ta) Surface Mount VS-8 (2.9x1.5) | Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
