TLP748J(TP1,F)

Toshiba Semiconductor and Storage

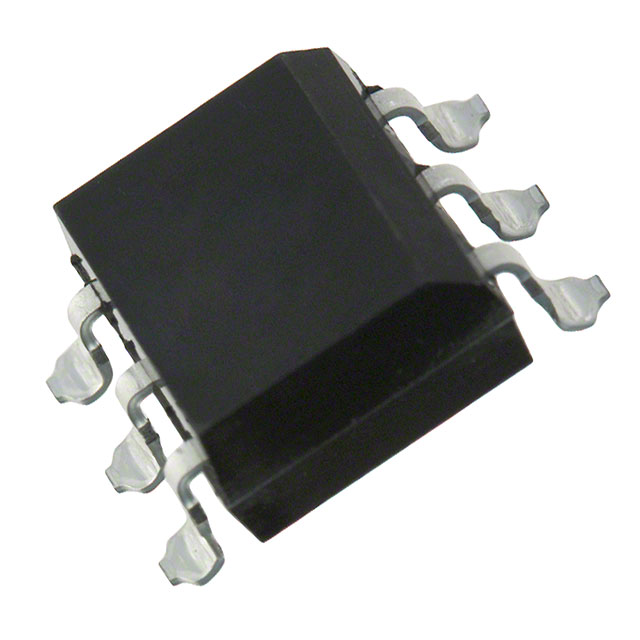

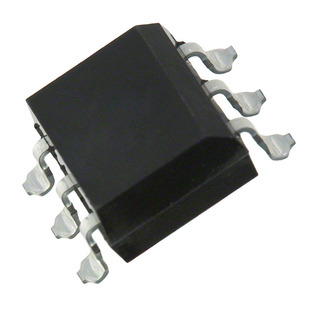

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP748J(TP1,F)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISOLATOR 4KV SCR 6SMD
Datasheets:	TLP748J(TP1,F).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	63494 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 63494 pcs

Reference Price (In US Dollars)

1 pcs: $0.72

10 pcs: $0.586

25 pcs: $0.45

100 pcs: $0.405

250 pcs: $0.36

500 pcs: $0.306

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.72

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP748J(TP1,F)

Part Number	TLP748J(TP1,F)	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISOLATOR 4KV SCR 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63494 pcs	Data sheet	TLP748J(TP1,F).pdf
Zero Crossing Circuit	No	Voltage - Off State	600V
Voltage - Isolation	4000Vrms	Voltage - Forward (Vf) (Typ)	1.15V
Turn On Time	15µs	Supplier Device Package	6-SMD
Static dV/dt (Min)	5V/µs	Series	-
Packaging	Original-Reel®	Package / Case	6-SMD, Gull Wing
Output Type	SCR	Other Names	TLP748JTP1FDKR
Operating Temperature	-40°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Optoisolator SCR Output 4000Vrms 1 Channel 6-SMD
Current - On State (It (RMS)) (Max)	150mA	Current - LED Trigger (Ift) (Max)	10mA
Current - Hold (Ih)	1mA	Current - DC Forward (If) (Max)	50mA
Approvals	BSI, SEMKO, UR
