TLP331(F)

Toshiba Semiconductor and Storage

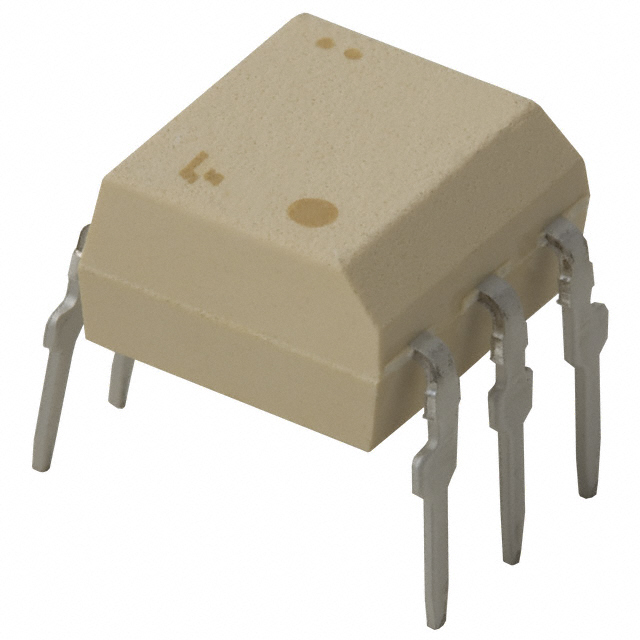

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP331(F)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISO 5KV TRANS W/BASE 6DIP
Datasheets:	TLP331(F).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	75235 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 75235 pcs

Reference Price (In US Dollars)

1 pcs: $0.563

10 pcs: $0.458

50 pcs: $0.353

100 pcs: $0.317

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.563

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP331(F)

Part Number	TLP331(F)	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISO 5KV TRANS W/BASE 6DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	75235 pcs	Data sheet	TLP331(F).pdf
Voltage - Output (Max)	55V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	10µs, 8µs	Supplier Device Package	6-DIP
Series	-	Rise / Fall Time (Typ)	8µs, 8µs
Packaging	Tube	Package / Case	6-DIP (0.300", 7.62mm)
Output Type	Transistor with Base	Other Names	TLP331F
Operating Temperature	-55°C ~ 100°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP	Current Transfer Ratio (Min)	100% @ 1mA
Current Transfer Ratio (Max)	1200% @ 1mA	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	50mA
