TLP293-4(V4GBTRE

Toshiba Semiconductor and Storage

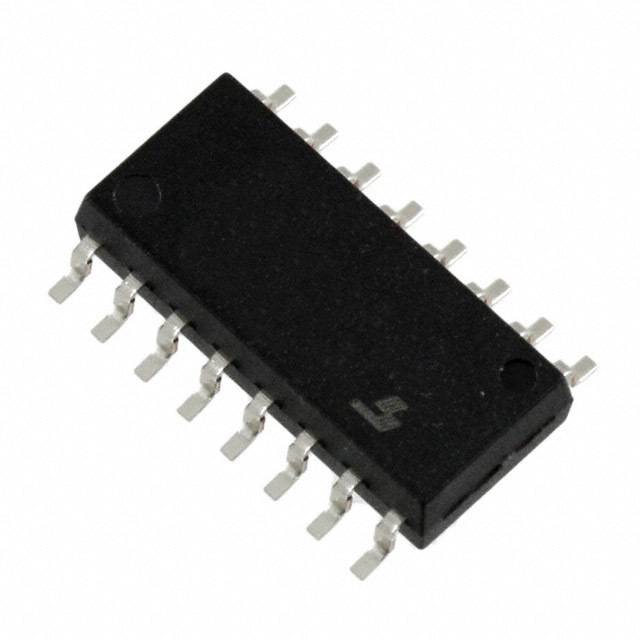

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP293-4(V4GBTRE
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISOLATOR 3.75KV TRANS SO16
Datasheets:	TLP293-4(V4GBTRE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	112546 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 112546 pcs

Reference Price (In US Dollars)

1 pcs: $0.533

10 pcs: $0.433

25 pcs: $0.333

100 pcs: $0.30

250 pcs: $0.266

500 pcs: $0.226

1000 pcs: $0.186

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.533

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP293-4(V4GBTRE

Part Number	TLP293-4(V4GBTRE	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISOLATOR 3.75KV TRANS SO16	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	112546 pcs	Data sheet	TLP293-4(V4GBTRE.pdf
Voltage - Output (Max)	80V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.25V	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	3µs, 3µs	Supplier Device Package	16-SO
Series	-	Rise / Fall Time (Typ)	2µs, 3µs
Packaging	Cut Tape (CT)	Package / Case	16-SOIC (0.179", 4.55mm Width)
Output Type	Transistor	Other Names	TLP293-4(V4GBTRECT
Operating Temperature	-55°C ~ 125°C	Number of Channels	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 3750Vrms 4 Channel 16-SO	Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	50mA
