TLP2601(TP1,F)

Toshiba Semiconductor and Storage

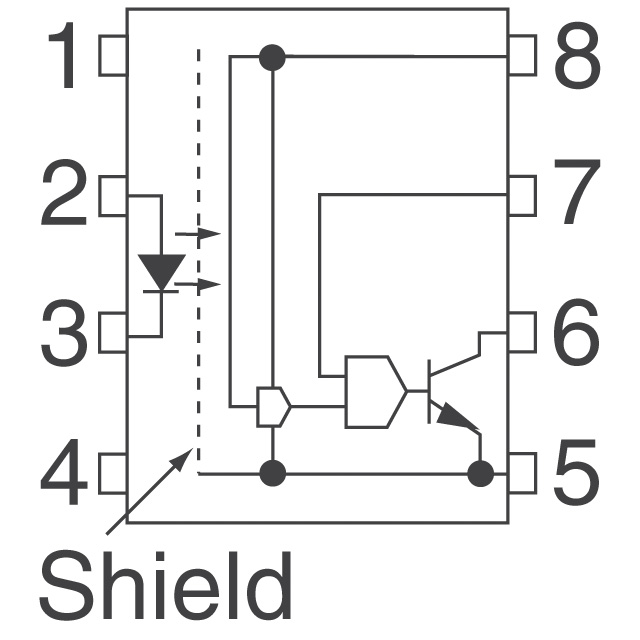

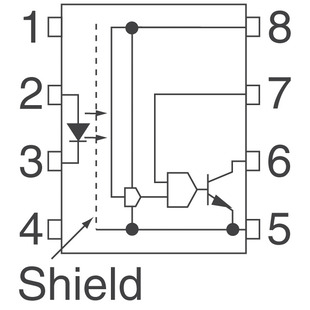

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP2601(TP1,F)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISO 2.5KV OPN COLLECTOR 8SMD
Datasheets:	TLP2601(TP1,F).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	80049 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 80049 pcs

Reference Price (In US Dollars)

1500 pcs: $0.259

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.259

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP2601(TP1,F)

Part Number	TLP2601(TP1,F)	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISO 2.5KV OPN COLLECTOR 8SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80049 pcs	Data sheet	TLP2601(TP1,F).pdf
Voltage - Supply	4.5 V ~ 5.5 V	Voltage - Isolation	2500Vrms
Voltage - Forward (Vf) (Typ)	1.65V	Supplier Device Package	8-SMD
Series	-	Rise / Fall Time (Typ)	30ns, 30ns
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns	Packaging	Tape & Reel (TR)
Package / Case	8-SMD, Gull Wing	Output Type	Open Collector, Schottky Clamped
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inputs - Side 1/Side 2	1/0
Input Type	DC	Detailed Description	Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 2500Vrms 1 Channel 1kV/µs CMTI 8-SMD
Data Rate	10MBd	Current - Output / Channel	25mA
Current - DC Forward (If) (Max)	20mA	Common Mode Transient Immunity (Min)	1kV/µs
