Toshiba Semiconductor and Storage

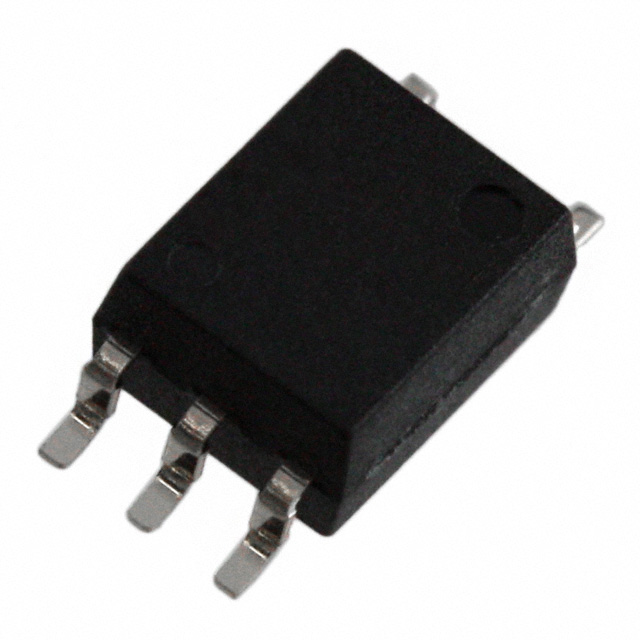

| Part Number | TLP2309(E) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISO 3.75KV TRANS 6-SO 5 LEAD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 147920 pcs | Data sheet | TLP2309(E).pdf |
| Voltage - Output (Max) | 20V | Voltage - Isolation | 3750Vrms |
| Voltage - Forward (Vf) (Typ) | 1.55V | Vce Saturation (Max) | - |
| Turn On / Turn Off Time (Typ) | 1µs, 1µs (Max) | Supplier Device Package | 6-SO, 5 Lead |
| Series | - | Rise / Fall Time (Typ) | - |
| Packaging | Tube | Package / Case | 6-SOIC (0.179", 4.55mm Width), 5 Leads |
| Output Type | Transistor | Other Names | TLP2309(E(O TLP2309(E(T TLP2309E |
| Operating Temperature | -40°C ~ 110°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 3750Vrms 1 Channel 6-SO, 5 Lead | Current Transfer Ratio (Min) | 15% @ 16mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 8mA |
| Current - DC Forward (If) (Max) | 25mA |
