TLP124(TPR,F)

Toshiba Semiconductor and Storage

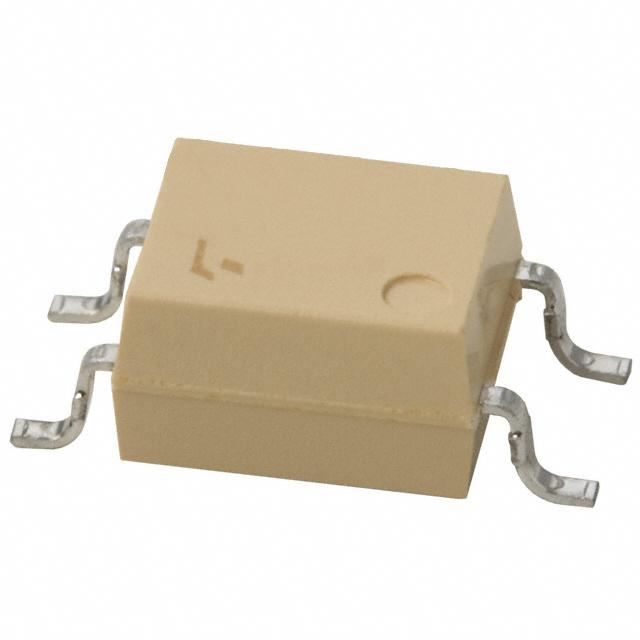

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP124(TPR,F)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISOLTR 3.75KV TRANS 6-MFSOP
Datasheets:	TLP124(TPR,F).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	211444 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 211444 pcs

Reference Price (In US Dollars)

3000 pcs: $0.104

6000 pcs: $0.101

15000 pcs: $0.099

30000 pcs: $0.097

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.104

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP124(TPR,F)

Part Number	TLP124(TPR,F)	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISOLTR 3.75KV TRANS 6-MFSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	211444 pcs	Data sheet	TLP124(TPR,F).pdf
Voltage - Output (Max)	80V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	10µs, 8µs	Supplier Device Package	6-MFSOP, 4 Lead
Series	-	Rise / Fall Time (Typ)	8µs, 8µs
Packaging	Tape & Reel (TR)	Package / Case	6-SMD (4 Leads), Gull Wing
Output Type	Transistor	Other Names	TLP124FTR
Operating Temperature	-55°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 6-MFSOP, 4 Lead	Current Transfer Ratio (Min)	100% @ 1mA
Current Transfer Ratio (Max)	1200% @ 1mA	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	50mA
