Toshiba Semiconductor and Storage
| Part Number | 2SK2963(TE12L,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 100V 1A PW-MINI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5478 pcs | Data sheet | 1.2SK2963(TE12L,F).pdf2.2SK2963(TE12L,F).pdf |
| Vgs(th) (Max) @ Id | 2V @ 1mA | Vgs (Max) | ±20V |

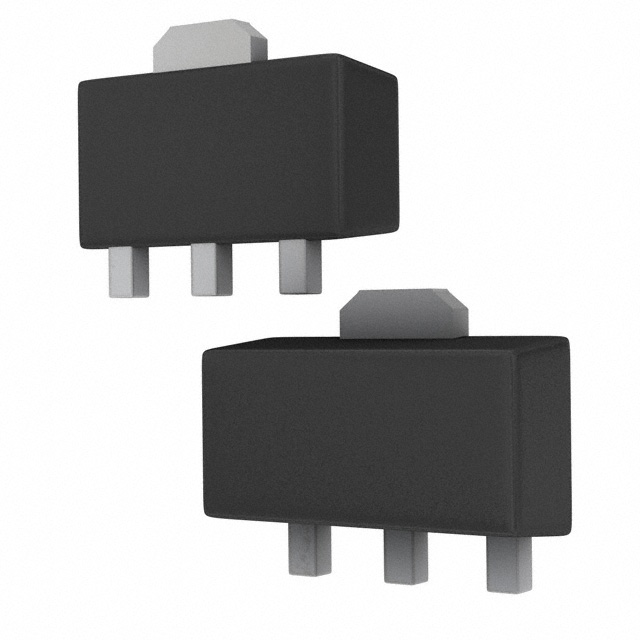

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | PW-MINI |
| Series | - | Rds On (Max) @ Id, Vgs | 700 mOhm @ 500mA, 10V |
| Power Dissipation (Max) | 500mW (Ta) | Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA | Other Names | 2SK2963 (TE12L,F) 2SK2963FTR 2SK2963TE12LF |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 140pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 6.3nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 1A (Ta) 500mW (Ta) Surface Mount PW-MINI | Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
